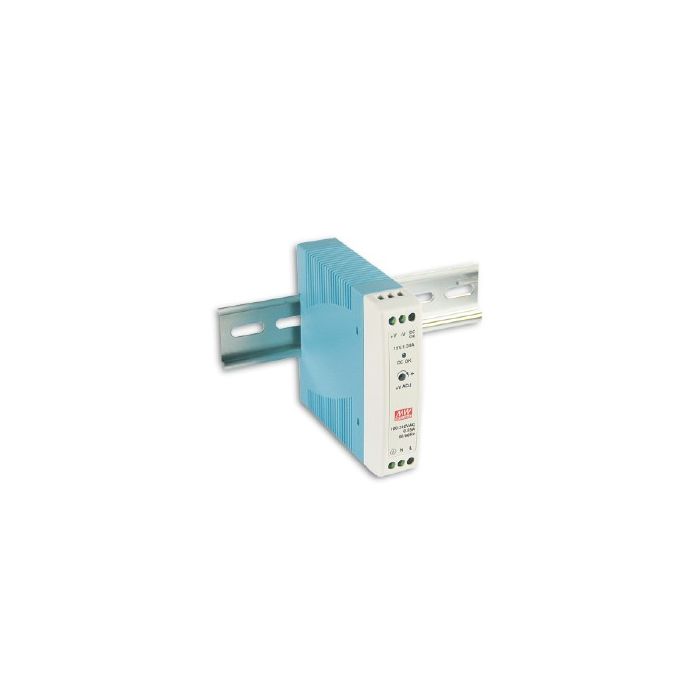

DIN-RAIL 22.5MM VOEDING 15W 5V/3.0A
€ 18,95
€ 15,66
Artikelnummer
MDR205
- ArtikelnummerMDR205
- MerkMEANWELL
- Aantal 3+ € 17,99 € 14,87
MODEL MDR-20-5
OUTPUT:
DC VOLTAGE 5V
RATED CURRENT 3A
CURRENT RANGE 0~ 3.0A
RATED POWER 15W
RIPPLE & NOISE (max.) Note.2 80mVp-p
VOLTAGE ADJ. RANGE 4.74-5.5V
VOLTAGE TOLERANCE Note.3 +/-2.0%
LINE REGULATION +/-1.0%
LOAD REGULATION +/-1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC at full load
INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 76%
AC CURRENT (Typ.) 0.35A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION:
OVERLOAD
105 ~ 160% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75-6.75V
Protection type : Shut down o/p voltage, re-power on to recover.
FUNCTION DC OK SIGNAL (max.) 3.75-6V/50mA
DIMENSION: 22.5*90*100mm (W*H*D)
OUTPUT:
DC VOLTAGE 5V
RATED CURRENT 3A
CURRENT RANGE 0~ 3.0A
RATED POWER 15W
RIPPLE & NOISE (max.) Note.2 80mVp-p
VOLTAGE ADJ. RANGE 4.74-5.5V
VOLTAGE TOLERANCE Note.3 +/-2.0%
LINE REGULATION +/-1.0%
LOAD REGULATION +/-1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC at full load
INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 76%
AC CURRENT (Typ.) 0.35A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION:
OVERLOAD
105 ~ 160% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75-6.75V
Protection type : Shut down o/p voltage, re-power on to recover.
FUNCTION DC OK SIGNAL (max.) 3.75-6V/50mA
DIMENSION: 22.5*90*100mm (W*H*D)
