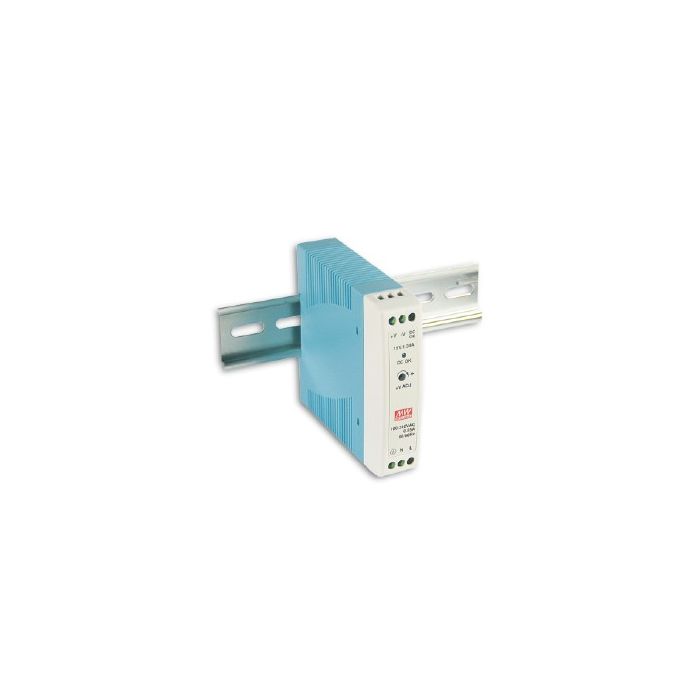

DIN-RAIL 22.5MM VOEDING 20W 15V/1.34A
€ 18,95
€ 15,66
Artikelnummer
MDR2015
- ArtikelnummerMDR2015
- MerkMEANWELL
- Aantal 3+ € 17,99 € 14,87
MODEL MDR-20-15
OUTPUT:
DC VOLTAGE 15V
RATED CURRENT 1.34
CURRENT RANGE 0~ 1.34A
RATED POWER 20W
RIPPLE & NOISE (max.) Note.2 120mVp-p
VOLTAGE ADJ. RANGE 13.5~16.5V
VOLTAGE TOLERANCE Note.3 +/-1.0%
LINE REGULATION +/-1.0%
LOAD REGULATION +/-1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC at full load
INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81%
AC CURRENT (Typ.) 0.35A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION:
OVERLOAD
105 ~ 160% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 17.25 - 20.25V
Protection type : Shut down o/p voltage, re-power on to recover.
FUNCTION DC OK SIGNAL (max.) 11.5-16.5V/40mA
DIMENSION: 22.5*90*100mm (W*H*D)
OUTPUT:
DC VOLTAGE 15V
RATED CURRENT 1.34
CURRENT RANGE 0~ 1.34A
RATED POWER 20W
RIPPLE & NOISE (max.) Note.2 120mVp-p
VOLTAGE ADJ. RANGE 13.5~16.5V
VOLTAGE TOLERANCE Note.3 +/-1.0%
LINE REGULATION +/-1.0%
LOAD REGULATION +/-1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC at full load
INPUT:
VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81%
AC CURRENT (Typ.) 0.35A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION:
OVERLOAD
105 ~ 160% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 17.25 - 20.25V
Protection type : Shut down o/p voltage, re-power on to recover.
FUNCTION DC OK SIGNAL (max.) 11.5-16.5V/40mA
DIMENSION: 22.5*90*100mm (W*H*D)
