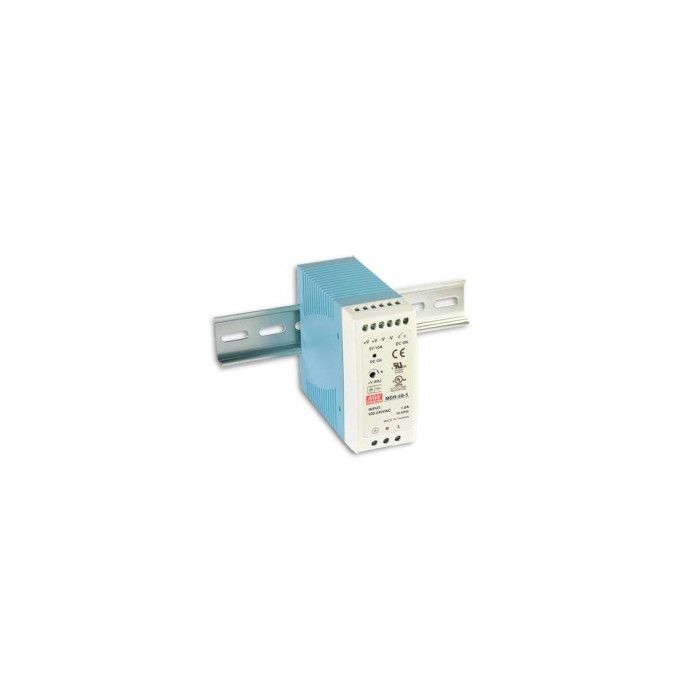

DIN-RAIL 55MM VOEDING 90W 12V/7.50A
€ 44,50
€ 36,78
Artikelnummer
MDR10012
- ArtikelnummerMDR10012
- MerkMEANWELL
- Aantal 3+ € 42,28 € 34,94
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
ZCS/ZVS technology to reduce power dissipation
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
DC OK relay contact
No load power consumption<1W
LED indicator for power on
100% full load burn-in test
Technical Specifications
Input Voltage: 85...264V AC (47...63Hz) 120...370V DC
Input Inrush Current, Max.: 60A
Leakage Current, Max.: 1mA
No Load Power Consumption, Max.: 0,75W
Over Load Protection: 105 ~ 150% rated output power
Operating Temperature: -10...+60°C
uitgangsspanning: 12V +/-1%
uitgangsstroom: 7.5A
max. vermogen: 90W
afmetingen: 55 x 90 x 100mm
gewicht: 420g
