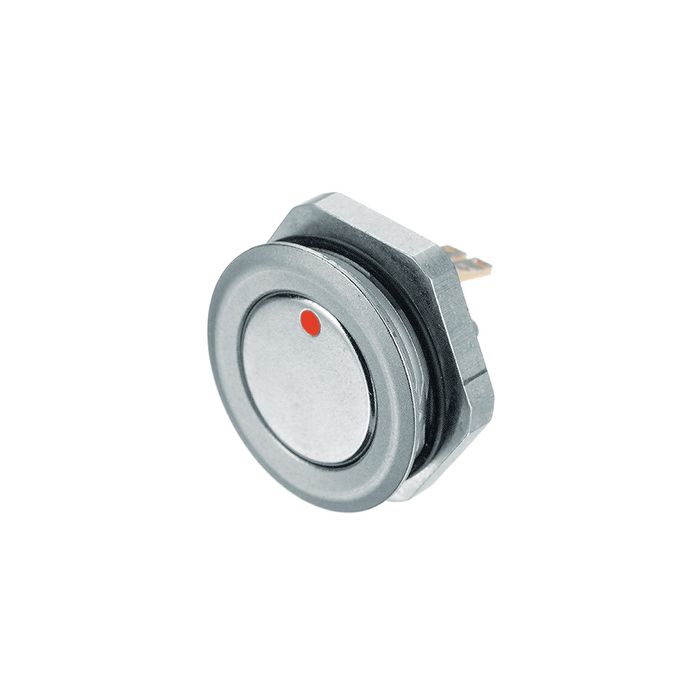

MOMENT 1X MAAK 48VDC/125MA MET RODE VERLICHTING
€ 15,75
€ 13,02
Artikelnummer
MCS1955
- ArtikelnummerMCS1955
- MerkBrand
- Aantal 5+ € 14,17 € 11,71
Features
| • Vandal-proof • Excellent quality • Secure tactile input-feedback • Solder pin |
 |
| Technical Specifications |
|
|
| Shell Material: | Zinc Die Cast |
| Operating Material MCS1901: | Zinc Die Cast |
| Operating Material MCS195_: | High-quality Steel |
| Material Contacts: | Silver-plated |
| Switching Voltage, Max.: | 48V DC |
| Switching Voltage, Min.: | 4V DC |
| Switching Current, Max.: | 0,125A |
| Switching Capacity, Max.: | 1,2W |
| Contact Resistance: | <50mOhm |
| Bounce Time, Typ: | <5ms |
| Operating Force: | 3,7N ±0,3N |
| Operating Path: | 0,4mm |
| Operating Life/Cycles: | 106 |
| Temperature Range: | -25...+60°C |
| Protection Against Mechanical Strain | |
| (DIN EN 50102): | IK05 |
| Protection Class: | IP40 |
