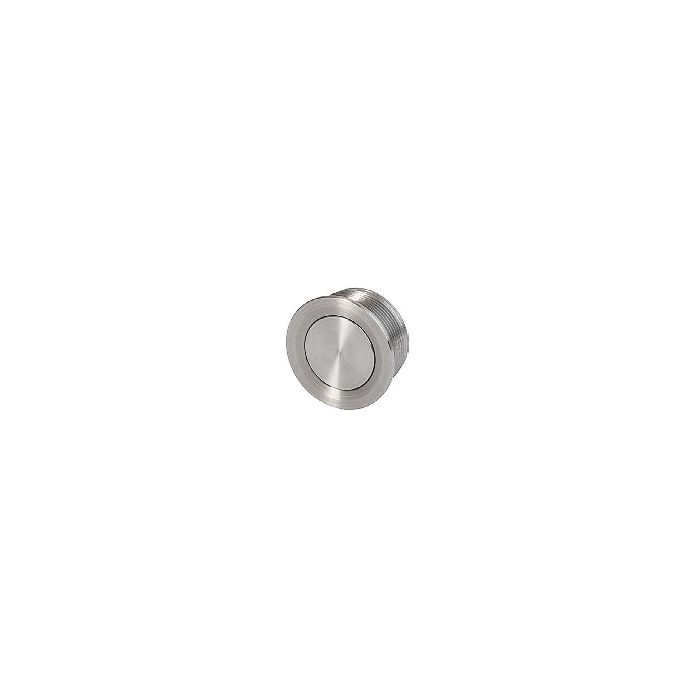

MOMENT 1X MAAK 48VDC/125MA
€ 7,95
€ 6,57
Artikelnummer
MCS1901
- ArtikelnummerMCS1901
- MerkBrand
- Aantal 5+ € 7,15 € 5,91
Features
• Vandal-proof • Excellent quality • Secure tactile input-feedback • Solder pin |
Technical Specifications |
Shell Material: | Zinc Die Cast |
Operating Material MCS1901: | Zinc Die Cast |
Operating Material MCS195_: | High-quality Steel |
Material Contacts: | Silver-plated |
Switching Voltage, Max.: | 48V DC |
Switching Voltage, Min.: | 4V DC |
Switching Current, Max.: | 0,125A |
Switching Capacity, Max.: | 1,2W |
Contact Resistance: | <50mOhm |
Bounce Time, Typ: | <5ms |
Operating Force: | 3,7N ±0,3N |
Operating Path: | 0,4mm |
Operating Life/Cycles: | 106 |
Temperature Range: | -25...+60°C |
Protection Against Mechanical Strain | |
(DIN EN 50102): | IK05 |
Protection Class: | IP40 |
