PRESIDENT MC KINLEY AM/FM SSB

€ 349,96 € 289,22

Artikelnummer

MCKINLEY

27Mhz transceiver 40 kanalen AM/FM 4W en SSB 12W

Toon meer Toon minder

ArtikelnummerMCKINLEY
MerkPRESIDENT

Aantal 3+ € 332,45 € 274,75

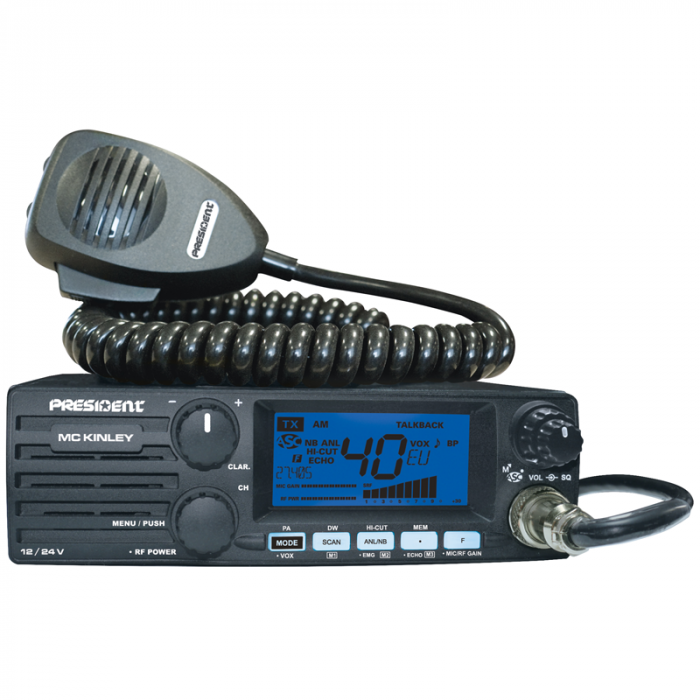

De President MC Kinley multimode CB is de eerste SSB-radio met een naar voren gerichte luidspreker. Dit is ideaal voor montage in voertuigen met een reserve DIN-radiosleuf.

Frequentiebereik: 26,965 - 27,405 MHz

Features

Modulation: AM / FM / LSB / USB
Multi-bands: Yes
Output power: AM/FM: 4 Watt / SSB: 12 Watt
Channels: 40
Front speaker: Yes
Display type: LCD display
Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
VOX Function: Yes
Noise blanker: Yes
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
Emergency channel: Yes
Keypad lock: Yes
Scan function: Yes
Memory channels: Yes
External speaker socket: Yes
External PA socket: Yes
S-meter: Yes
MIC gain: Yes
RF gain: Yes
TOT (time out timer): Yes
Dual watch: Yes
External VOX socket: Yes
Roger Beep: Yes

Electrical data

Voltage: 13,8 Volt / 24 Volt /

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Microphone sensitivity: 3.0 mV
Frequency allowance: ± 300 Hz
Transmission interference: inferior to 4 nW (- 54 dBm)
Emitted power in the adjacent channel: inferior a 20 μW
Modulated signal distortion: 1.8 %
Drain: 13.2 Volt: <3.0 A

Receiver

AM sensitivity: 0,5 µV - 113 dBm
FM sensitivity: 0,5 µV - 113 dBm
SSB sensitivity: 0,28 µV - 118 dBm
Frequency response: 300 Hz - 3 kHz
Adjacent channel selectivity: 60 dB
Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate image rejection rate: 70 dB
Drain: min. 400 mA / max. 1000 mA

Mechanical data

Length: 150 mm
Height: 52 mm
Width: 170 mm
Weight: 1100 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: 6 pin connector

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, Spanish, French, Polish
