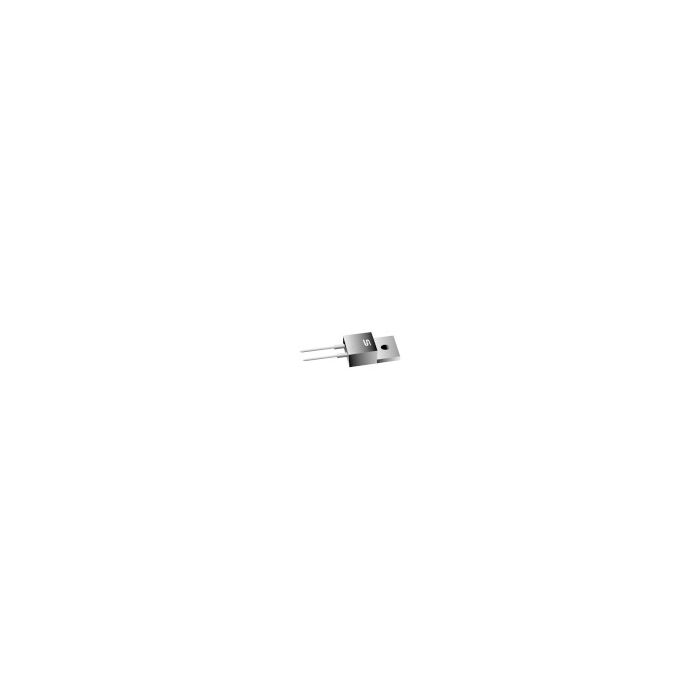

DIODE SCHOTTKY 45V 16A TP220AC
€ 1,88
€ 1,55
Artikelnummer
MBR1645
- ArtikelnummerMBR1645
- MerkBrand
- Aantal 10+ € 1,59 € 1,31
Features
Plastic material used carries Underwriters Laboratory
Classifications 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
High surge capability
For use in low voltage, high frequency inverters, free
wheeling, and polarity protection applications
Guardring for overvoltage protection
High temperature soldering guaranteed:
250oC/10 seconds,0.25(6.35mm)from case
Mechanical Data
Cases: JEDEC TO-220A molded plastic body
Terminals: Lead solderable per MIL-STD-750, Method
2026
Polarity: As marked
Mounting position: Any
Mounting torque: 5 in. - lbs. max
Weight: 0.08 ounce, 2.24 grams
Maximum Recurrent Peak Reverse Voltage 45 V
Maximum RMS Voltage 31 V
Maximum DC Blocking Voltage 45 V
Maximum Average Forward Rectified Current at Tc=125OC 16 A
Peak Repetitive Forward Current (Rated VR, Square Wave, 20KHz) at Tc=125oC 32.0 A
Plastic material used carries Underwriters Laboratory
Classifications 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
High surge capability
For use in low voltage, high frequency inverters, free
wheeling, and polarity protection applications
Guardring for overvoltage protection
High temperature soldering guaranteed:
250oC/10 seconds,0.25(6.35mm)from case
Mechanical Data
Cases: JEDEC TO-220A molded plastic body
Terminals: Lead solderable per MIL-STD-750, Method
2026
Polarity: As marked
Mounting position: Any
Mounting torque: 5 in. - lbs. max
Weight: 0.08 ounce, 2.24 grams
Maximum Recurrent Peak Reverse Voltage 45 V
Maximum RMS Voltage 31 V
Maximum DC Blocking Voltage 45 V
Maximum Average Forward Rectified Current at Tc=125OC 16 A
Peak Repetitive Forward Current (Rated VR, Square Wave, 20KHz) at Tc=125oC 32.0 A
