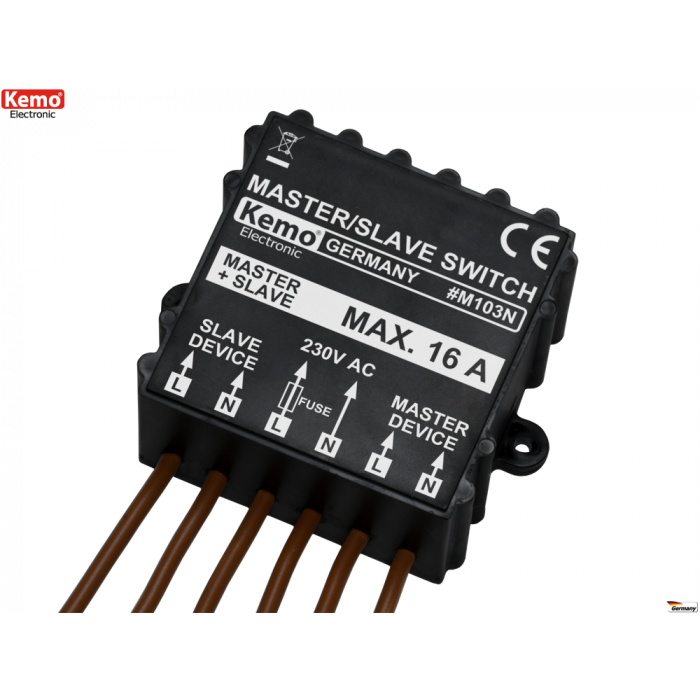

MASTER-SLAVE MODULE 230V
€ 25,72
€ 21,26
Artikelnummer
M103
- ArtikelnummerM103
- MerkKEMO
- Aantal 5+ € 24,43 € 20,19
Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.
| Technical Data | |
| Operating Voltage | 230 V/AC |
| Maximum Currents | 15 A for the master, 15 A for the slave, but the total current must not exceed 16 A! |
| Example | if the master port needs 10 A, only one slave load of max. 6 A can be connected |
| Tripping Power | The module connects at currents of approx. Ø 40 mA or less |
| Operating temperature range | -15 ºC to + 70 ºC |
| Switch Function | Relay 1 x ON max. 16 A |
| Own Power Module | <0.5 W |
| Dimensions without mounting brackets | 67 x 65 x 37 mm |
| Connection | Connection cable (single core) |
