MARINE ANTENNE 135-175MHZ 3.65DBI 5/8 UHF-CONNECTOR
€ 47,95
€ 39,63
Artikelnummer
GP3E
- ArtikelnummerGP3E
- MerkSIRIO
- Aantal 3+ € 43,15 € 35,66

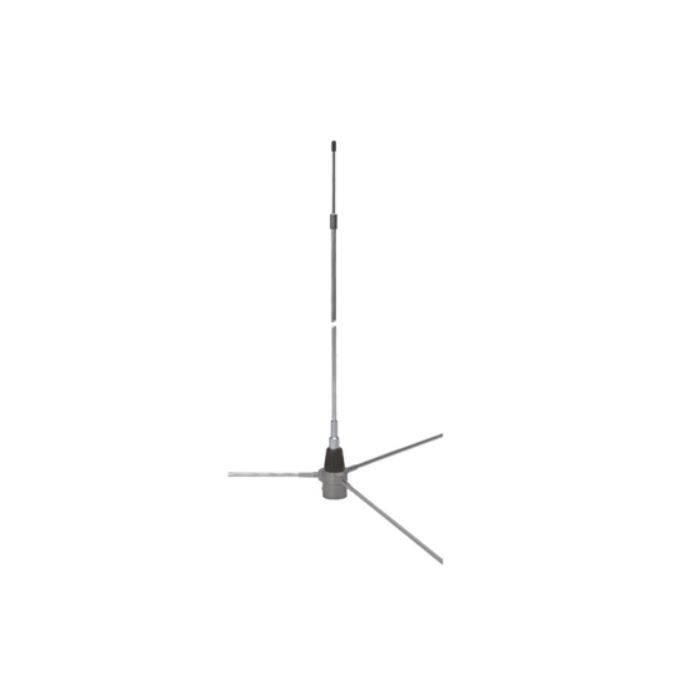

5/8 λ Ground Plane base station antenna for land and marine service. It works on the frequency range of 135-175 MHz by using the tuning diagram enclosed. The matching coil is DC feeded for a perfect protection from the static discharges. GP 3-E is made of non-corrosive aluminium and assembled on a very strong base of die-cast metal to get the maximum robustness and the best performance. Tuning is easy by following the attached directions.
Frequency range: 135 - 175 MHz tunable
- Electrical type: 5/8 λ ground plane
- Gain: 1.5 dBd, 3.65 dBi
- VSWR: ≤ 1.2
- Bandwidth: 6.7 MHz ≤ 2.0
- Maximum continuous power: 200 Watts
- Impedance: 50 Ohm
- Polarization: Linear vertical
