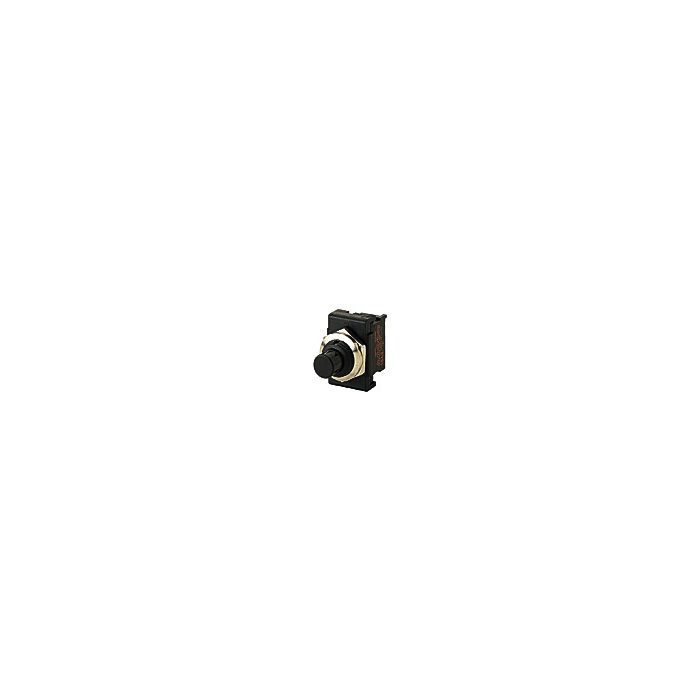

BUTTON 1 X OM 250V 6A

€ 6,95 € 5,74
Artikelnummer
M4312
  • ArtikelnummerM4312
  • MerkMARQUARDT
  • Aantal 10+   € 6,24 € 5,16
Print deze pagina Print deze pagina
Switching function Changeover switch (SPDT momentary)
Number of poles 1-pole
connections Quick-connect terminal, 4.8
Mechanical life endurance 10E4
Rating IEC 6 (2) A 250 V AC 5E4
Rating North America 6 A 125 - 250 V AC 1/8 HP
Contact resistance (new condition) < 100 (1 A 12 V DC) mOhm
Insulation resistance (new condition) > 100 (500 V DC) MOhm
Proof tracking 250 PTI
Protection type Connection IP 40

Temperature Connection side min. -20 ¡ãC
Connection side max. 100 ¡ãC
Actuation side min. -20 ¡ãC
Actuation side max. 55 ¡ãC

Flammability UL 94 V-2
Glow wire test temperature 850 ¡ãC
Actuators and additional actuators PA, black
Housing description PA, black, PA glass fiber-reinforced
Connection surface external connection silver plated

Contact material Ag
Contact distance ¡Ý 3 mm
Plug force of the terminals ¡Ü 80 N
Approval marks CSA / ENEC 05 / UL
