MONO VERSTERKER 12W 8-16VDC

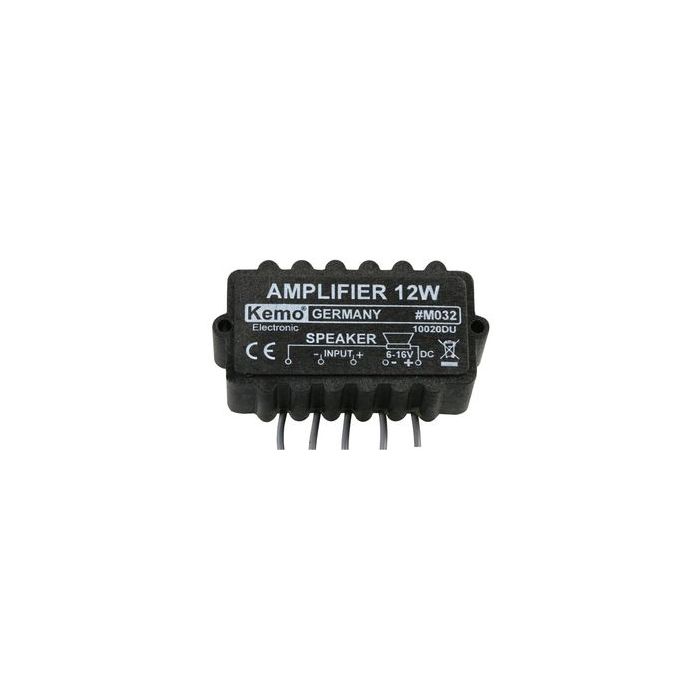

Robust amplifier module for universal use. The module is cast humidity-proof and shake-proof. The casting compound and the module case consist of a special, highly heat-conductive plastic. So no additional heat sinks are needed. The module is protected electronically against overheating and overload.

Technical Data
Operating voltage 8 - 16 V/DC
Current consumption max. 800 mA
Input sensitivity < 80 mV
Loudspeaker connection 4 - 16 ohm
Music power max. 12 W with 16 V at a 4-ohm loudspeaker
Frequency response approx. 40 - 20.000 Hz
Dimensions approx. 70 x 36 x 23 mm (without fixing straps
