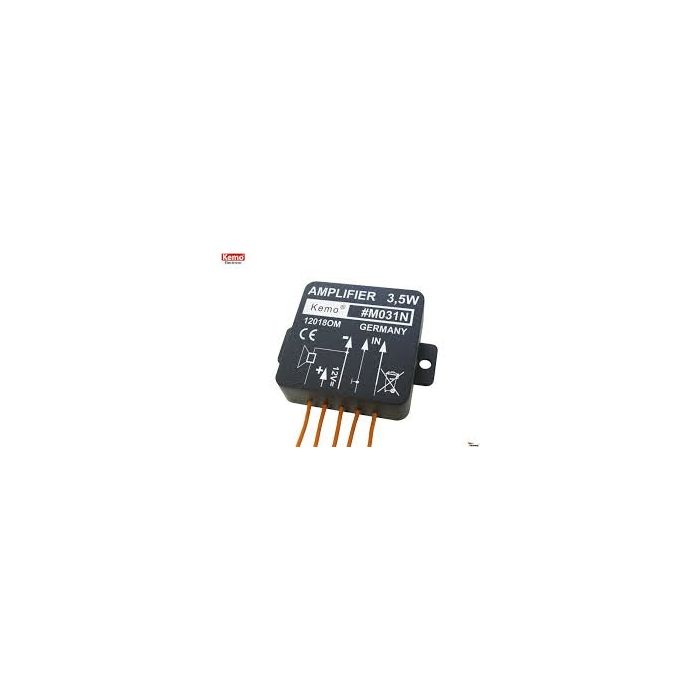

MONO VERSTERKER 3.5W 4,5-12VDC

Robust amplifier module for universal use. The module is cast humidity-proof and shake-proof. The casting compound and the module case consist of a special, highly heat-conductive plastic. So no additional heat sinks are needed. The module is protected electronically against overheating and overload.

Technical Data
Operating voltage 4.5 - 12 V/DC
Output max. 3.5 W music power
Loudspeaker connection 4 - 16 ohm
Input sensitivity < 80 mV
Frequency response approx. 40 - 20.000 Hz
Dimensions approx. 40 x 40 x 12 mm (without fastening straps)
