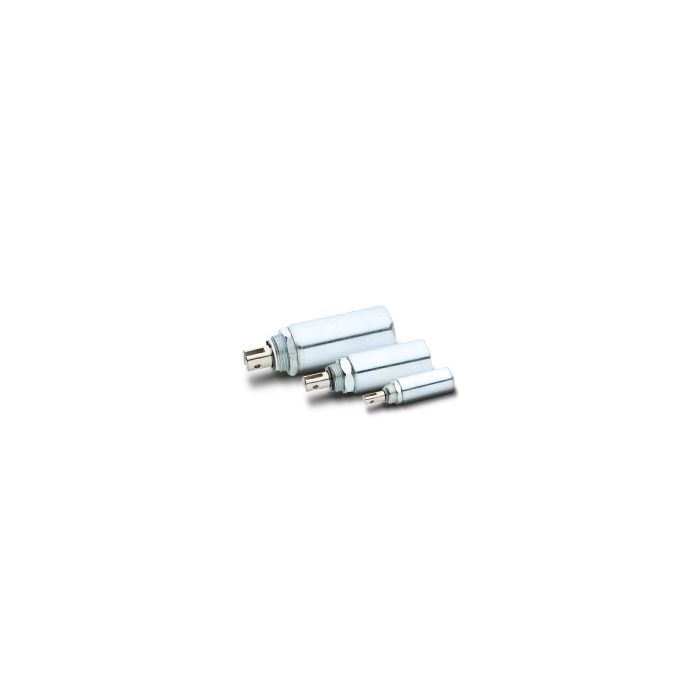

SOLENOID DUWMAGNEET 12VDC/1.40A 4,2KG
€ 56,49
€ 46,69
Artikelnummer
LZ3869D12
- ArtikelnummerLZ3869D12
- MerkRED-MAGNETICS
- Aantal 5+ € 50,84 € 42,02
Description
Due to closed frame body tubular solenoid
are highly efficient.
Useable in rough ambience.
Tubular Solenoid medium
Stroke 20 30 mm. Weight: 500,0 g
Coil Data
Relative ED (Percent) 100 50 25 10
Max. Performance
(Watt) 16,8 33,6 67,2 168
Max. ED (Seconds) ∞ 420 100 25
Solenoid Layout
Version:
Pressure Solenoid with spring return
Current:
12 VDC (standard)
