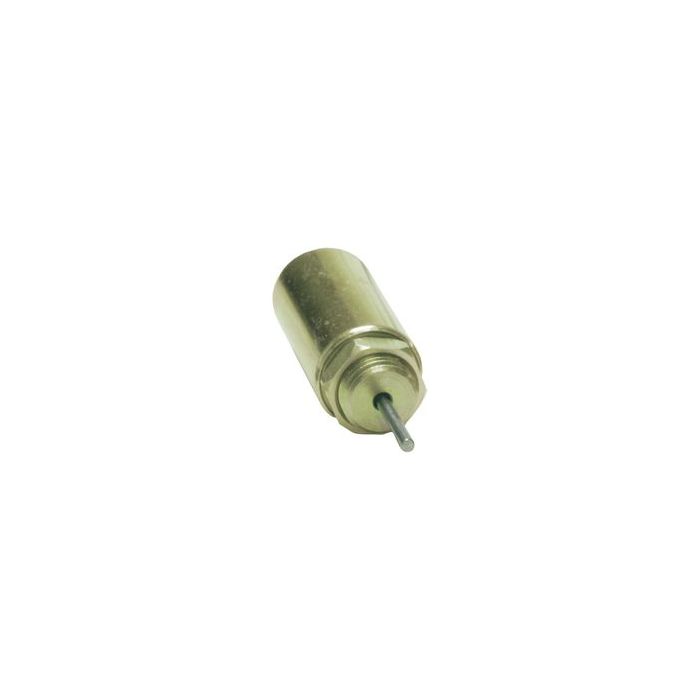

SOLENOID DUWMAGNEET 24VDC/0.417A 2,2KG
€ 27,50
€ 22,73
Artikelnummer
LZ2560D24
- ArtikelnummerLZ2560D24
- MerkRED-MAGNETICS
- Aantal 5+ € 24,74 € 20,45
Features
Cylindrically housing
with fixing screw
Stable housing for use in harsh environment
Available as pull version or push version include recuperating spring
Min. 200mm connecting lead
Voltage : 24VDC
Current : 0,417A
Power at 100%ED : 10W
Holding Force : 2,2kg
Start Force : 0,75kg
End Force : 2,2kg
Dimensions : 25x60mm
Weight Solenoid : 178gr
Weight Ancher : 43gr
Screw Thread : 0,75\"-16UNF-2A
Cylindrically housing
with fixing screw
Stable housing for use in harsh environment
Available as pull version or push version include recuperating spring
Min. 200mm connecting lead
Voltage : 24VDC
Current : 0,417A
Power at 100%ED : 10W
Holding Force : 2,2kg
Start Force : 0,75kg
End Force : 2,2kg
Dimensions : 25x60mm
Weight Solenoid : 178gr
Weight Ancher : 43gr
Screw Thread : 0,75\"-16UNF-2A
