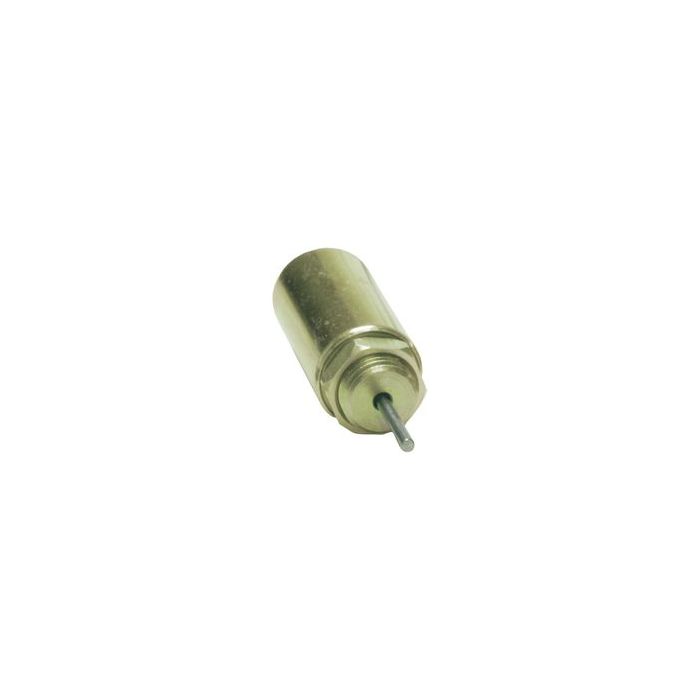

SOLENOID DUWMAGNEET 12VDC/0.583A 1,1KG
€ 27,95
€ 23,10
Artikelnummer
LZ1949D12
- ArtikelnummerLZ1949D12
- MerkRED-MAGNETICS
- Aantal 5+ € 25,16 € 20,79
Features
Cylindrically housing
with fixing screw
Stable housing for use in harsh environment
Available as pull version or push version include recuperating spring
Min. 200mm connecting lead
Voltage : 12VDC
Current : 0,583A
Power at 100%ED : 7W
Holding Force : 1,1kg
Start Force : 0,6kg
End Force : 11kg
Dimensions : 19x49mm
Weight Solenoid : 82gr
Weight Ancher : 20gr
Screw Thread : 0,562\"-18UNF-2A
Cylindrically housing
with fixing screw
Stable housing for use in harsh environment
Available as pull version or push version include recuperating spring
Min. 200mm connecting lead
Voltage : 12VDC
Current : 0,583A
Power at 100%ED : 7W
Holding Force : 1,1kg
Start Force : 0,6kg
End Force : 11kg
Dimensions : 19x49mm
Weight Solenoid : 82gr
Weight Ancher : 20gr
Screw Thread : 0,562\"-18UNF-2A
