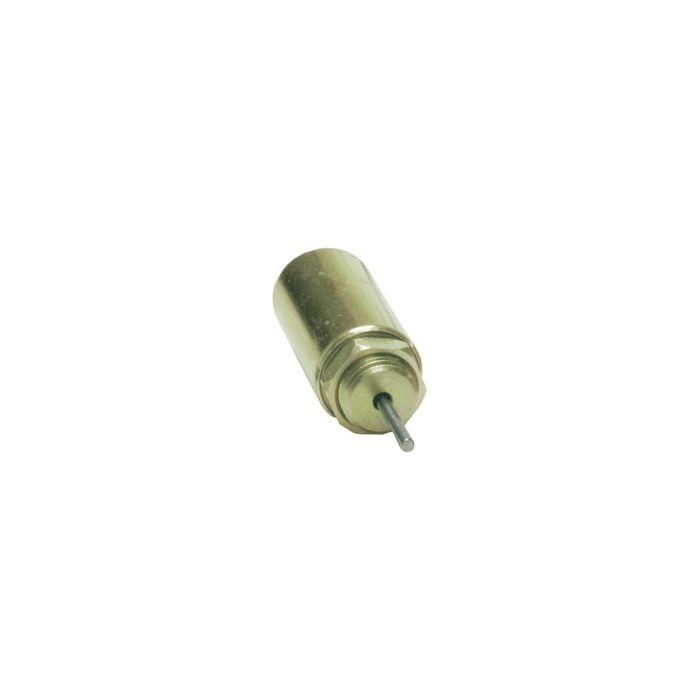

SOLENOID DUWMAGNEET 24VDC/0.167A 0,25KG
€ 17,50
€ 14,46
Artikelnummer
LZ1335D24
- ArtikelnummerLZ1335D24
- MerkRED-MAGNETICS
- Aantal 5+ € 15,74 € 13,01
Features
Cylindrically housing
with fixing screw
Stable housing for use in harsh environment
Available as pull version or push version include recuperating spring
Min. 200mm connecting lead
Voltage : 24VDC
Current : 0,167A
Power at 100%ED : 4W
Holding Force : 0,250kg
Start Force : 0,4kg
End Force : 2kg
Dimensions : 13x35mm
Weight Solenoid : 23gr
Weight Ancher : 4,9gr
Screw Thread : 0,375\"-32UNEF-2A
Cylindrically housing
with fixing screw
Stable housing for use in harsh environment
Available as pull version or push version include recuperating spring
Min. 200mm connecting lead
Voltage : 24VDC
Current : 0,167A
Power at 100%ED : 4W
Holding Force : 0,250kg
Start Force : 0,4kg
End Force : 2kg
Dimensions : 13x35mm
Weight Solenoid : 23gr
Weight Ancher : 4,9gr
Screw Thread : 0,375\"-32UNEF-2A
