SOLENOID BISTABIEL 24VDC/1.0A 0,6KG
€ 28,96
€ 23,93
Artikelnummer
LX1513-24
- ArtikelnummerLX1513-24
- MerkRED-MAGNETICS
- Aantal 5+ € 26,05 € 21,53
Features
Bistable solenoid
Stroke length of 6mm
Lower weight by open frame design
Stable in the end positions
Forcibly guided ram
Electrical connection : stranded wire 100+10mm
Mechanical connection (thread see also data sheet):
ITS-LX-2218_: M2,5 (4x)
Voltage: 24Vdc
Current: 1.0A
Power at 100%ED: 24W
Typical Force: 6N

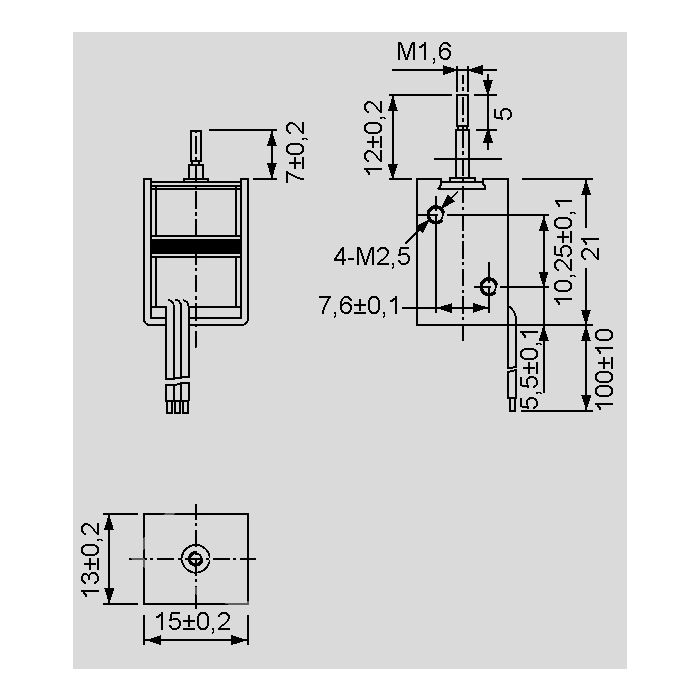

Dimensions: 13x15x21mm
Weight Solenoid: 58gr.
Bistable solenoid
Stroke length of 6mm
Lower weight by open frame design
Stable in the end positions
Forcibly guided ram
Electrical connection : stranded wire 100+10mm
Mechanical connection (thread see also data sheet):
ITS-LX-2218_: M2,5 (4x)
Voltage: 24Vdc
Current: 1.0A
Power at 100%ED: 24W
Typical Force: 6N
Dimensions: 13x15x21mm
Weight Solenoid: 58gr.
