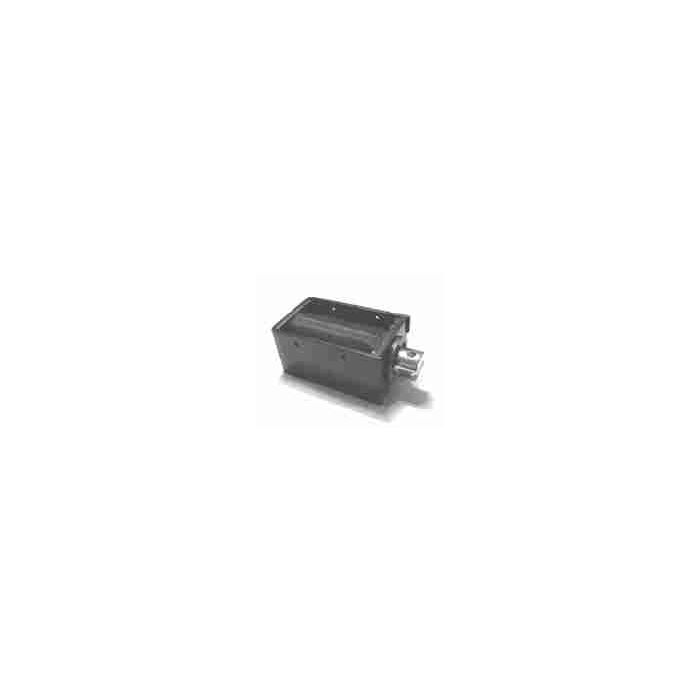

SOLENOID TREKMAGNEET 24VDC/0.333A 5,6KG
€ 32,50
€ 26,86
Artikelnummer
LS3830BZ24
- ArtikelnummerLS3830BZ24
- MerkRED-MAGNETICS
- Aantal 5+ € 29,25 € 24,17
Features
Framed Magnet
with mounting holes
Low weight because of open framed housing
Open framed with closed brace
Min. 200mm connecting lead
Voltage : 24VDC
Current : 0,333A
Power at 100%ED : 8W
Holding Force : 5,6kg
Start Force : 0,2kg
End Force : 5,6kg
Dimensions : 64x38x30mm
Weight Solenoid : 363gr
Weight Ancher : 71gr
Screw Thread : 2-4*M3*0,5
Framed Magnet
with mounting holes
Low weight because of open framed housing
Open framed with closed brace
Min. 200mm connecting lead
Voltage : 24VDC
Current : 0,333A
Power at 100%ED : 8W
Holding Force : 5,6kg
Start Force : 0,2kg
End Force : 5,6kg
Dimensions : 64x38x30mm
Weight Solenoid : 363gr
Weight Ancher : 71gr
Screw Thread : 2-4*M3*0,5
