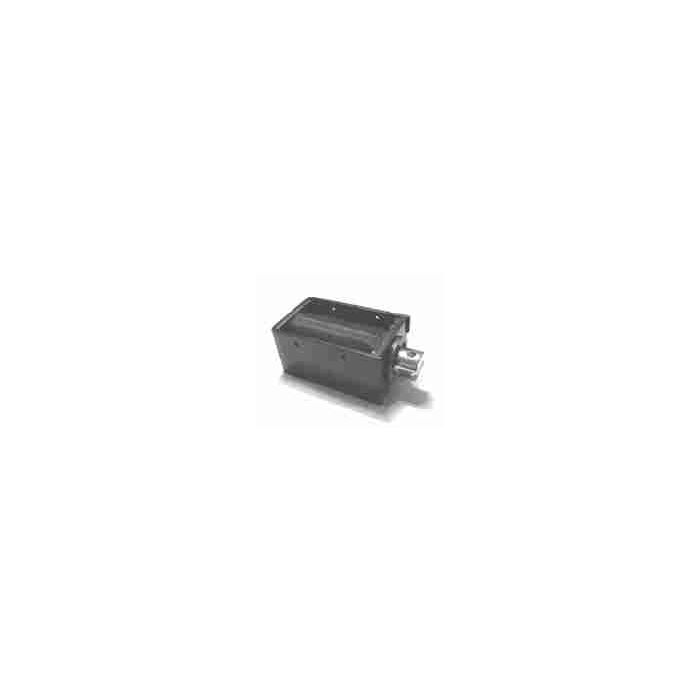

SOLENOID TREKMAGNEET 12VDC/0.666A 5,6KG
€ 39,95
€ 33,02
Artikelnummer
LS3830BZ12
- ArtikelnummerLS3830BZ12
- MerkRED-MAGNETICS
- Aantal 5+ € 35,95 € 29,71
Features
Framed Magnet
with mounting holes
Low weight because of open framed housing
Open framed with closed brace
Min. 200mm connecting lead
Voltage : 12VDC
Current : 0,666A
Power at 100%ED : 8W
Holding Force : 5,6kg
Start Force : 0,2kg
End Force : 5,6kg
Dimensions : 64x38x30mm
Weight Solenoid : 363gr
Weight Ancher : 71gr
Screw Thread : 2-4*M3*0,5
Framed Magnet
with mounting holes
Low weight because of open framed housing
Open framed with closed brace
Min. 200mm connecting lead
Voltage : 12VDC
Current : 0,666A
Power at 100%ED : 8W
Holding Force : 5,6kg
Start Force : 0,2kg
End Force : 5,6kg
Dimensions : 64x38x30mm
Weight Solenoid : 363gr
Weight Ancher : 71gr
Screw Thread : 2-4*M3*0,5
