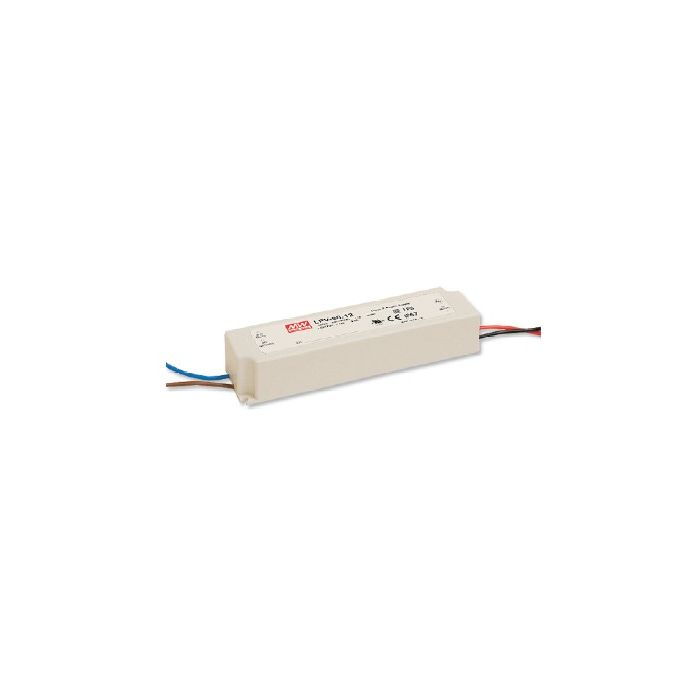

LED VOEDING 15V/4.00A 60,0W IP67 BEHUIZING
€ 21,95
€ 18,14
Artikelnummer
LPV6015
- ArtikelnummerLPV6015
- MerkMEANWELL
- Aantal 3+ € 20,85 € 17,23
Features
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 400g
Dimensons 162,5x42,5x32mm (LxWXH)
Output Voltage: 15Vdc
Output Current Range: 0 - 4,00A
Output Power: 60W
Output Voltage Tolerance: 2%
Ripple & Noise: 120mVp-p
Typ. Efficiency: 83%
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 400g
Dimensons 162,5x42,5x32mm (LxWXH)
Output Voltage: 15Vdc
Output Current Range: 0 - 4,00A
Output Power: 60W
Output Voltage Tolerance: 2%
Ripple & Noise: 120mVp-p
Typ. Efficiency: 83%
