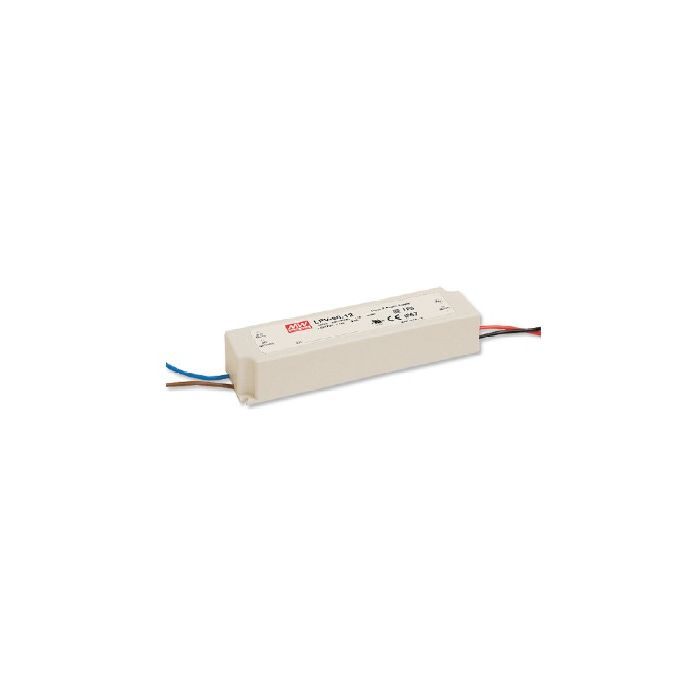

LED VOEDING 5V/8.00A 40,0W IP67 BEHUIZING
€ 23,95
€ 19,79
Artikelnummer
LPV6005
- ArtikelnummerLPV6005
- MerkMEANWELL
- Aantal 3+ € 22,75 € 18,80
Features
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 400g
Dimensons 162,5x42,5x32mm (LxWXH)
Output Voltage: 5Vdc
Output Current Range: 0 - 8,0A
Output Power: 40W
Output Voltage Tolerance: 6%
Ripple & Noise: 80mVp-p
Typ. Efficiency: 76%
