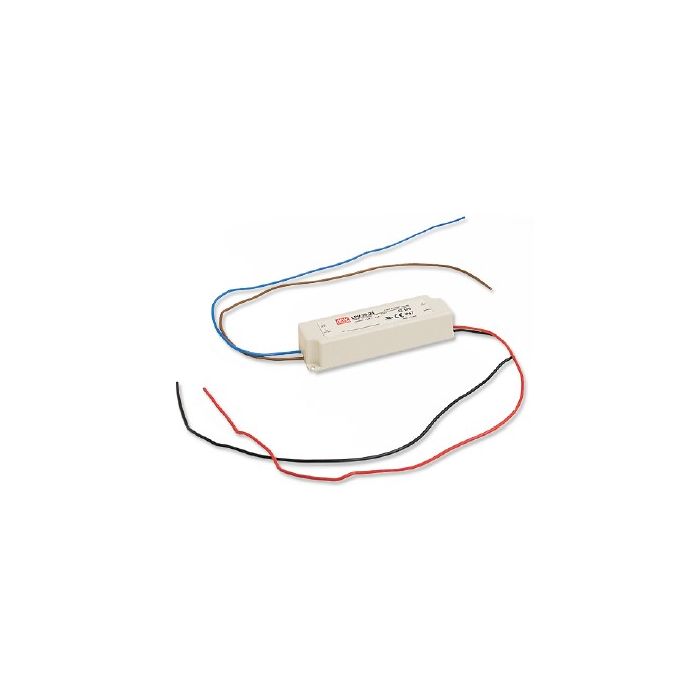

LED VOEDING 12V/3.00A 36,0W IP67 BEHUIZING
€ 22,95
€ 18,97
Artikelnummer
LPV3512
- ArtikelnummerLPV3512
- MerkMEANWELL
- Aantal 3+ € 20,65 € 17,07
Features
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+75°C
Weight: 340g
Dimensons 148x40x30mm (LxWXH)
Output Voltage: 12Vdc
Output Current Range: 0 - 3,0A
Output Power: 36W
Output Voltage Tolerance: 5%
Ripple & Noise:120mVp-p
Typ. Efficiency: 84%
