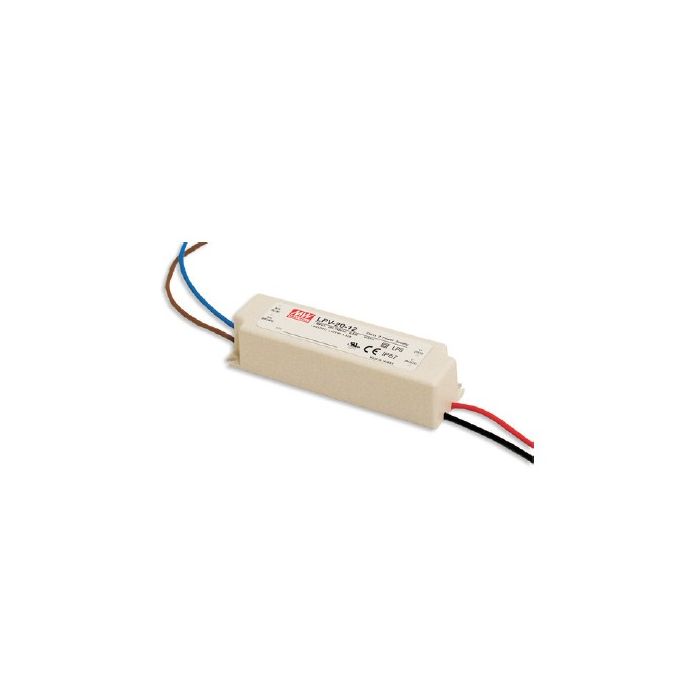

LED VOEDING 12V/1.67A 20,0W IP67 BEHUIZING
€ 13,95
€ 11,53
Artikelnummer
LPV2012
- ArtikelnummerLPV2012
- MerkMEANWELL
- Aantal 3+ € 12,55 € 10,37
Features
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 70A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 220g
Dimensons 118x35x26mm (LxWXH)
Output Voltage: 12Vdc
Output Current Range: 0 - 1,67A
Output Power: 20W
Output Voltage Tolerance: 5%
Ripple & Noise: 120mVp-p
Typ. Efficiency: 81%
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 70A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 220g
Dimensons 118x35x26mm (LxWXH)
Output Voltage: 12Vdc
Output Current Range: 0 - 1,67A
Output Power: 20W
Output Voltage Tolerance: 5%
Ripple & Noise: 120mVp-p
Typ. Efficiency: 81%
