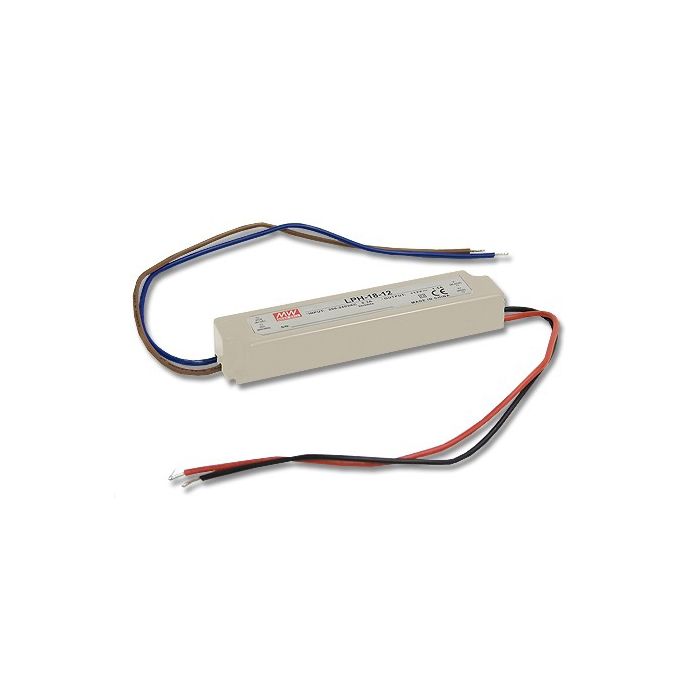

LED VOEDING 12V/1,5A 18,0W IP67 BEHUIZING
€ 11,95
€ 9,88
Artikelnummer
LPH1812
- ArtikelnummerLPH1812
- MerkMEANWELL
- Aantal 3+ € 10,76 € 8,89
Features
Input Voltage 180...264V AC
Overload protection, pulsing hiccup shutdown reset, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
Fixed output voltage
Input Voltage: 180...264V AC (47...63Hz)
Input Inrush Current, Max.: 50A
Over Load Protection: >105%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -25...+70°C
Weight: 175g
Dimensons 140x30x20mm (LxWXH)
Output Voltage: 12Vdc
Output Current Range: 0 - 1,5A
Output Power: 18W
Output Voltage Tolerance: 3%
Ripple & Noise: 120mVp-p
Typ. Efficiency: 78%
Input Voltage 180...264V AC
Overload protection, pulsing hiccup shutdown reset, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
Fixed output voltage
Input Voltage: 180...264V AC (47...63Hz)
Input Inrush Current, Max.: 50A
Over Load Protection: >105%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -25...+70°C
Weight: 175g
Dimensons 140x30x20mm (LxWXH)
Output Voltage: 12Vdc
Output Current Range: 0 - 1,5A
Output Power: 18W
Output Voltage Tolerance: 3%
Ripple & Noise: 120mVp-p
Typ. Efficiency: 78%
