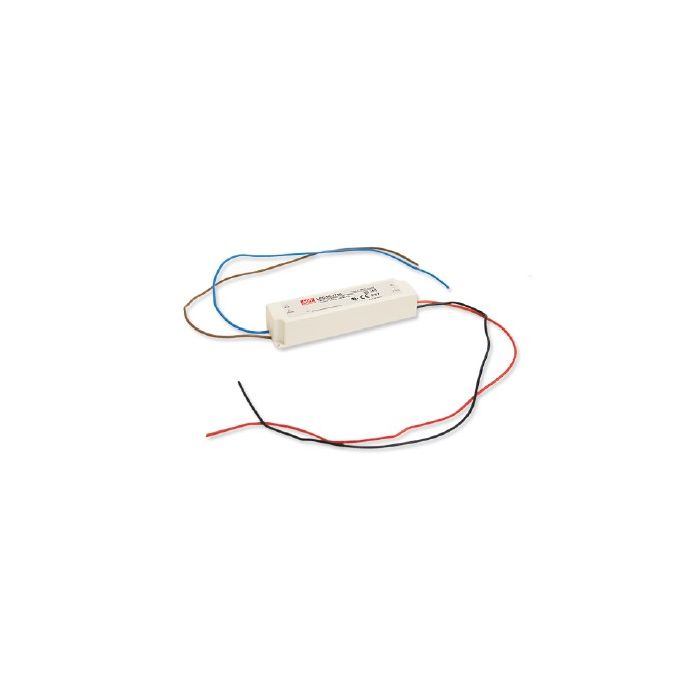

LED DRIVER 9-48V/1.05A 50,4W IP67 BEHUIZING
€ 23,95
€ 19,79
Artikelnummer
LPC601050
- ArtikelnummerLPC601050
- MerkMEANWELL
- Aantal 5+ € 21,55 € 17,81
Features
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output current
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 400g
Dimensons 162.5x42.5x32mm (LxWXH)
Output Voltage: 9-48Vdc
Output Current Range: 1050mA
Output Power: 50,4W
Output Voltage Tolerance: 5%
Ripple & Noise: 200mVp-p
Typ. Efficiency: 87%
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output current
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 400g
Dimensons 162.5x42.5x32mm (LxWXH)
Output Voltage: 9-48Vdc
Output Current Range: 1050mA
Output Power: 50,4W
Output Voltage Tolerance: 5%
Ripple & Noise: 200mVp-p
Typ. Efficiency: 87%
