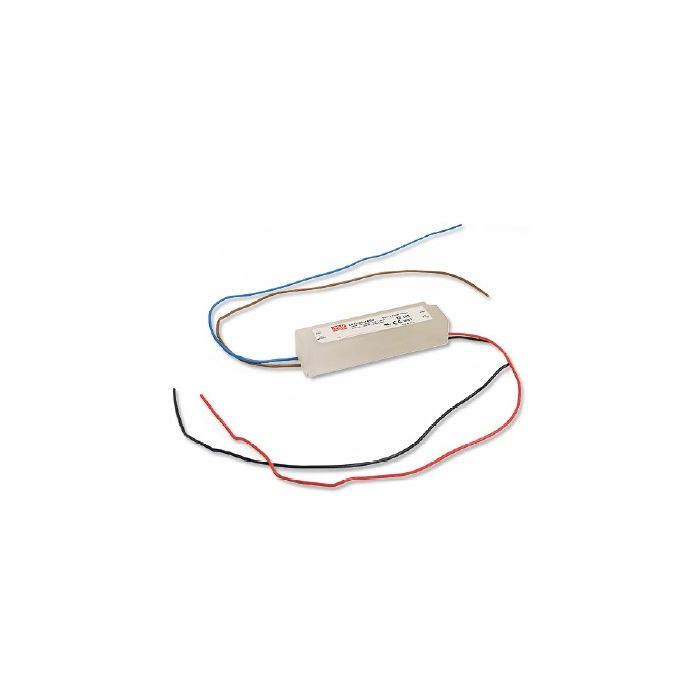

LED DRIVER 9-30V/1.05A 31,6W IP67 BEHUIZING
€ 19,95
€ 16,49
Artikelnummer
LPC351050
- ArtikelnummerLPC351050
- MerkMEANWELL
- Aantal 5+ € 17,96 € 14,84
Features
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output current
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+75°C
Weight: 340g
Dimensons 148x40x30mm (LxWXH)
Output Voltage: 9-30Vdc
Output Current Range: 1050mA
Output Power: 31,5W
Output Voltage Tolerance: 5%
Ripple & Noise: 200mVp-p
Typ. Efficiency: 85%
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output current
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 60A
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+75°C
Weight: 340g
Dimensons 148x40x30mm (LxWXH)
Output Voltage: 9-30Vdc
Output Current Range: 1050mA
Output Power: 31,5W
Output Voltage Tolerance: 5%
Ripple & Noise: 200mVp-p
Typ. Efficiency: 85%
