DUO LNB (ASTRA 19.2 + HOTBIRD 13.5) MET 4 UITGANGEN INGEBOUWDE DISEQ SWITCH

Short description
2 pos. / 1 user, w. plastic cover
Short description
2 pos. / 4 users, monoblock quatro switch

Sales description

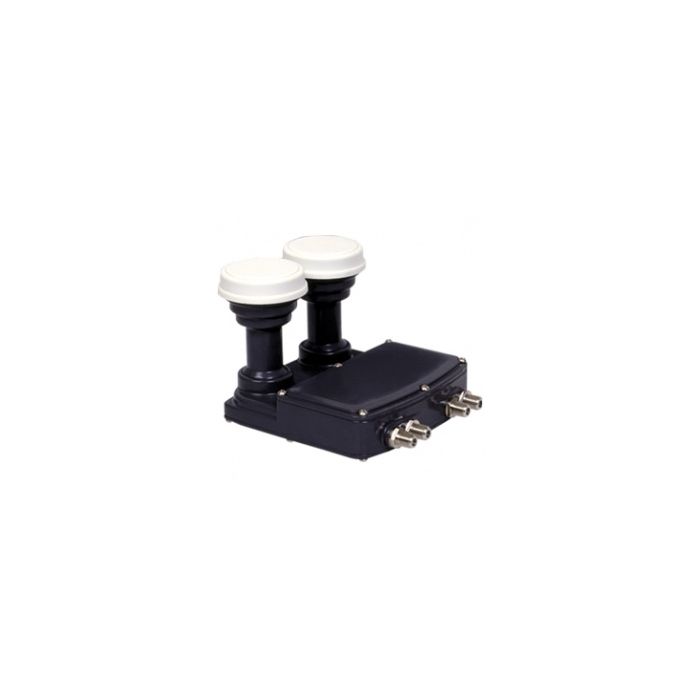

LNB - MBQS-24, Monoblock Quatro Switch
NF: Typ. 0.5 dB
LO 4 x 9.75 / 10.6
For 4 receivers

Technical data

Low band Hi band
Input Frequency Range x2 10.7 ~ 11.7 GHz 11.7 ~ 12.75 GHz
Output Frequency Range x4 950 ~ 1950 MHz 1100 ~ 2150 MHz
L.O. Frequency 9.75 GHz 10.6 GHz

Data
Noise Figure 0.5 dB (Typ.)
F/D Ratio 0.6
Input Reflector Type Offset
Cross Pol. Isolation 20 dB (Min.) 28 dB (Typ.)
Conversion Gain 50 dB (Min.) 62 dB (Max.)
Gain Flatness ± 0.5 dB / 27 MHz
L.O. Frequency Stability (25°) ±1 MHz
(-30° ~ 60°) ±3 MHz
L.O. Phase Noise (1 KHz Offset) - 60 dBc/Hz
10 KHz Offset) - 80 dBc/Hz
(100 KHz Offset) - 100 dBc/Hz
Output Power (at 1 dB
Gain Compression Point) 0 dBm (Min.)
Output Return Loss 7.5 dB
