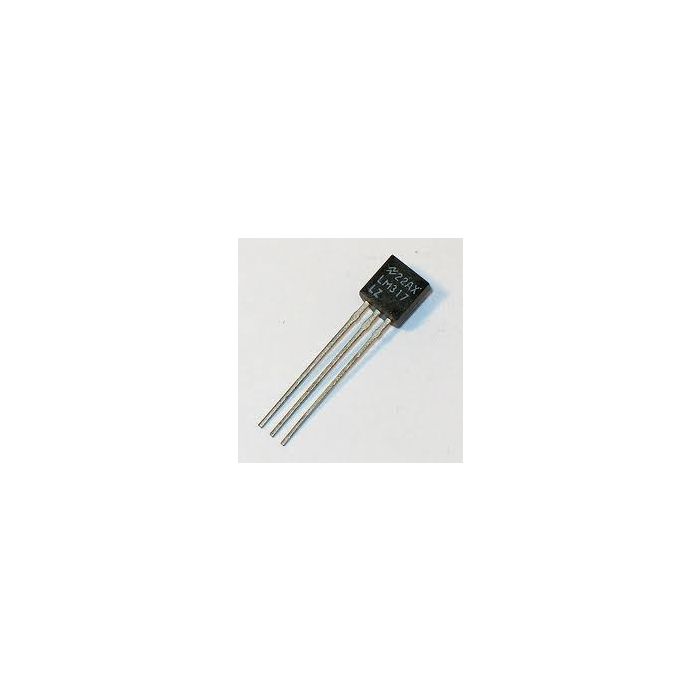

SPANNINGSREGELAAR 1.2V-37V. 0.1A TO-92
€ 0,91
€ 0,75
Artikelnummer
LM317LZ
- ArtikelnummerLM317LZ
- MerkBrand
- Aantal 10+ € 0,81 € 0,67
OUTPUT VOLTAGE RANGE : 1.2 TO 37V .OUTPUT CURRENT IN EXCESS OF 100 mA .LINE REGULATION TYP. 0.01% .LOAD REGULATION TYP. 0.1% .THERMAL OVERLOAD PROTECTION .SHORT CIRCUIT PROTECTION OUTPUT TRANSISTOR SAFE AREA COM.
PENSATION FLOATINGOPERATION FOR HIGH VOLTAGE
APPLICATIONS
DESCRIPTION
SO-8
TO-92
The LM217L/LM317L are monolithic integrated circuit
in SO-8 and TO-92 packages intended for use
as positive adjustable voltage regulators.
They are designed to supply until 100 mA of load
current with an output voltage adjustable over a 1.2
to 37V range.
The nominal output voltage is selected by means of
only a resistive divider, making the device exceptionally
easy to use and eliminating the stocking of
many fixed regulators.
PENSATION FLOATINGOPERATION FOR HIGH VOLTAGE
APPLICATIONS
DESCRIPTION
SO-8
TO-92
The LM217L/LM317L are monolithic integrated circuit
in SO-8 and TO-92 packages intended for use
as positive adjustable voltage regulators.
They are designed to supply until 100 mA of load
current with an output voltage adjustable over a 1.2
to 37V range.
The nominal output voltage is selected by means of
only a resistive divider, making the device exceptionally
easy to use and eliminating the stocking of
many fixed regulators.
