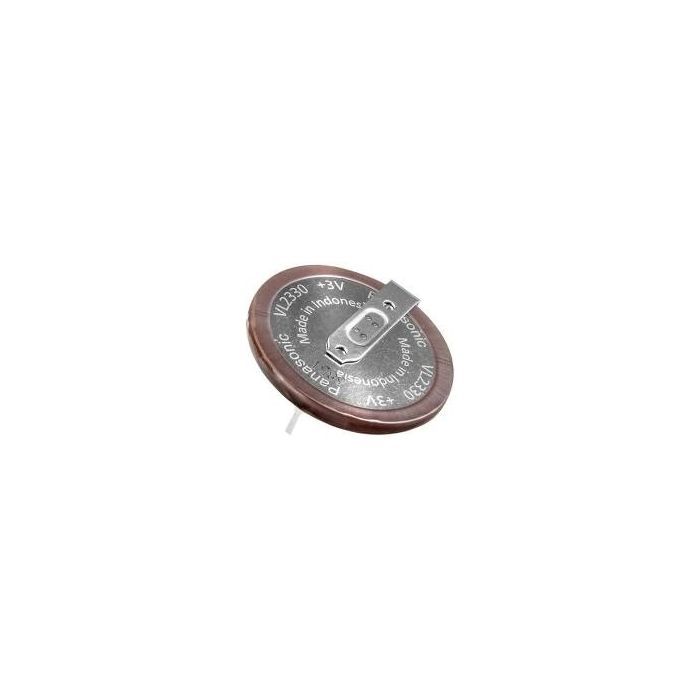

LITHIUM ACCU 3V 50MA LIGGEND 23X3MM VANADIUM-PENTOXIDE-LITHIUM
€ 6,96
€ 5,75
Artikelnummer
VL2330/HFN
- ArtikelnummerVL2330/HFN
- MerkPANASONIC
- Aantal 5+ € 6,26 € 5,17
.Features
| • As a backup in computers, fax machines and mobile phones • Low discharge current of 2% per year • After backup application rechargeable again |
 |
| Technical Specifications |
| Part Nr. | UN | Ctyp | ID | D | H | Weight | Tb |
| [V] | [mAh] | [mA] | [mm] | [mm] | [g] | [°C] | |
| VL1220_ | 3 | 7 | 0,03 | 12,5 | 2 | 0,8 | -20...+60 |
| VL2020_ | 3 | 20 | 0,07 | 20 | 2 | 2,2 | -20...+60 |
| VL2330_ | 3 | 50 | 0,1 | 23 | 3 | 3,7 | -20...+60 |
| UN= Rated Voltage, Ctyp= Capacitance, Typ., ID = Continuous Discharging Current, D = Diameter, H = Height, Tb = Temperature Range, Nominal Capacity is Based on Standard Drain ID and Cut Off Voltage Down to 2,5V at 20°C | |||||||
|
|||||||
| Charging Data |
|
|
| Constant Charging Voltage: | 3,4V±0,15V |
| Charging Current, Max | |
| VL1220_: | 0,5mA |
| VL2020_: | 1,5mA |
| VL2330_: | 2,0mA |
| Cycle Life | |
| At 10% Discharge Depth, Approx.: | 1000 |
| At 50% Discharge Depth, Approx.: | 100 |
