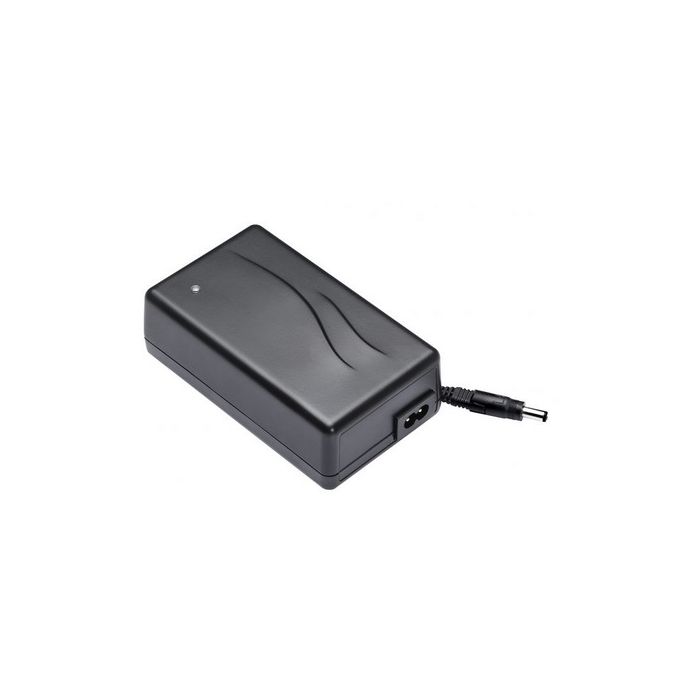

LI-ION BATTERIJ LADER 50,4V/1,2A/60,5W MET DC 2.1X5.5MM PLUG
€ 89,95
€ 74,34
Artikelnummer
MA2440505
- ArtikelnummerMA2440505
- MerkMASCOT
- Aantal 2+ € 85,45 € 70,62
| Features |
| • • 3-Stage charge control with current detection as charge termination • Universal input • 3-Colour LED displays • Mains connection cable with Euro plug and C7 small appliance socket can be ordered • Exchangeable DC connectors (must be ordered separately) • Protected against short circuit and reverse polarity • Protection class II • For applications in medical technology • Safety standards: EN60335-2-29, EN 60601-1, EN 60950 • EMC standards: EN55014-1 and others • |
 |
| Technical Specifications |
|
|
| Input Voltage Range: | 90...264V AC |
| 47...63Hz | |
| Operating temperature range: | -25...+40°C |
| Storage temperature range: | -25...+85°C |
| Ripple: | <100mVpp |
| Withstand Voltage (I/P-O/P): | 4000V AC/5700V DC |
| Cable length: | 1,80m |
| Dimensions: | 135x80x44 mm |
| Weight: | 390g |
| Protection class: | IP 41 |
| I/P = Input, O/P = Output | |
|
|
| Part Nr. | Cells | UA | IL | PA | h |
| [V] | [A] | [W] | [%] | ||
| MA2440135000 | 3 | 12,6 | 4 | 51 | >81 |
| MA2440165000 | 4 | 16,8 | 3,5 | 59 | >85 |
| MA2440295000 | 7 | 29,4 | 2,5 | 74 | >85 |
| MA2440425000 | 10 | 42 | 2,4 | 76 | 88 |
| MA2440505000 | 12 | 50,4 | 1,2 | 73 | 87 |
| MA2440595000 | 14 | 58,8 | 1 | 76 | 88 |
| UA= Charging Voltage, IL= Charging Current, Max. , PA= Output Power, h = Efficienc | |||||
