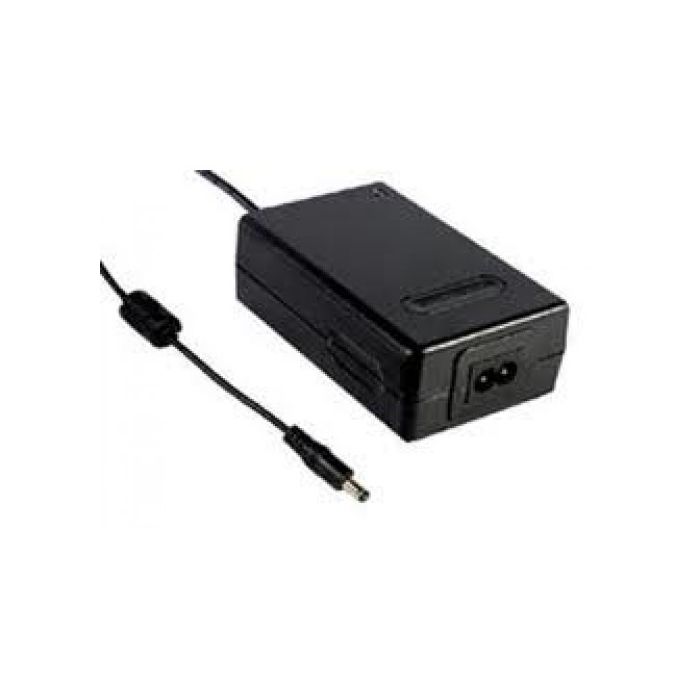

LI-ION BATTERIJ LADER 14.2V 0-2A MET DC 2.1X5.5MM PLUG
€ 49,95
€ 41,28
Artikelnummer
GC30B4P
- ArtikelnummerGC30B4P
- MerkMEANWELL
- Aantal 2+ € 47,44 € 39,21
| Features |
| • 2-stage charger for lead and Li-ion batteries • Wide input range • Insulation Class II • Protections: short circuit/over load/over voltage/ over temp. • Energy efficiency level VI (DOE) • Safety standards: UL60950-1, EN60950-1 • EMC standards: EN55014-1 Class B • 2 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 80...264V AC (47...63Hz) |
| 113...370V DC | |
| Input Inrush Current, Max.: | 110A |
| Operating Temperature: | -30...+70°C |
| Weight: | 1100g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| GC30B0P | 4,2 | 4 | 16,8 | 50 | 55 |
| GC30B2P | 8,4 | 3 | 25,2 | 80 | 76 |
| GC30B4P | 14,3 | 2,09 | 30 | 100 | 78 |
| GC30B5P | 16,8 | 1,6 | 27 | 100 | 78 |
| GC30B6P | 28,6 | 1,04 | 30 | 150 | 80 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
|
|||||
