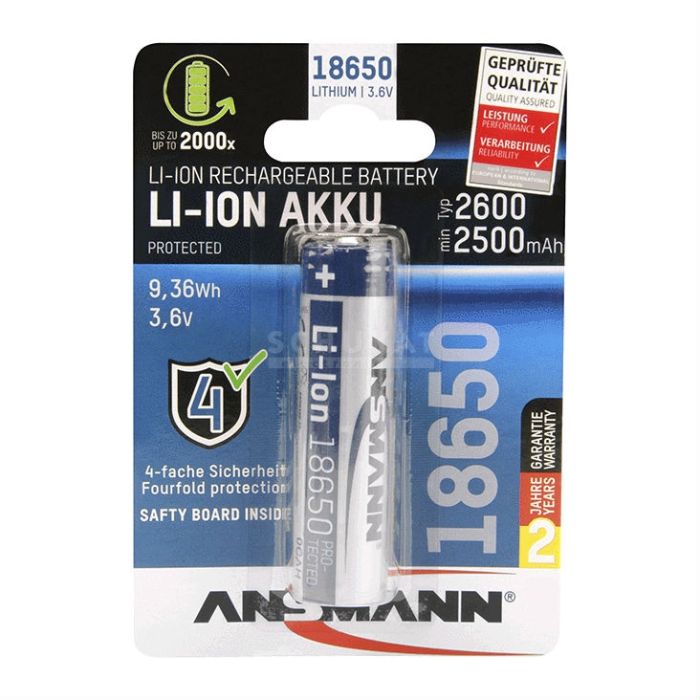

LI-ION 3.6V 2600MA 65X18MM PROTECTED 5A BUTTON-TOP
€ 15,95
€ 13,18
Artikelnummer
18650A26B5
- Artikelnummer18650A26B5
- MerkANSMANN
- Aantal 5+ € 14,35 € 11,86
Features
| • High-quality ANSMANN lithium battery 18650 with safety board • Integrated protective circuit protects against overcharging, overload, short-circuit and deep discharge • Ideal suitable for use in modern LED torches, headlamps, e-cigarettes, laser pens, etc.. • Perfect for equipment with high energy consumption • Low self-discharge • Max. continous discharge current: 5,2A • Small weight |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 3,6V |
| Service Life Expectancy (Operating Cycle): | ³300 Cycles |
| Ambient Temperatures | |
| Charging: | 0...+45°C |
| Discharging: | 0...+65°C |
| Storage | |
| up to 3 Months: | -20...+45°C |
| up to 1 Year: | -20...+25°C |
|
|
| Part No. | CR | IR1) | t1) | UL max.1) | Rinner |
| [mAh] | [mA] | [h] | [V] | [mOhm] | |
| 1307-0000 | 2600 | 520 | 6 | 4,2 | 120 |
| 1307-0001 | 3500 | 680 | 6 | 4,2 | 100 |
| CR= Rated Capacitance, IR = Rated Current, t = Time, ULmax. = Charging Voltage, max., Rinner = Inner Resistance After Charging, max. 1) Standard Charging | |||||
|
|||||
| Dimensions and Weight |
| Part No. | D | L | Weight |
| [mm] | [mm] | [g] | |
| 1307-0000 | 18,5±0,3 | 70-2 | 46±3 |
| 1307-0001 | 18,5±0,3 | 70-2 | 49±3 |
| D = Diameter, L = Length | |||
