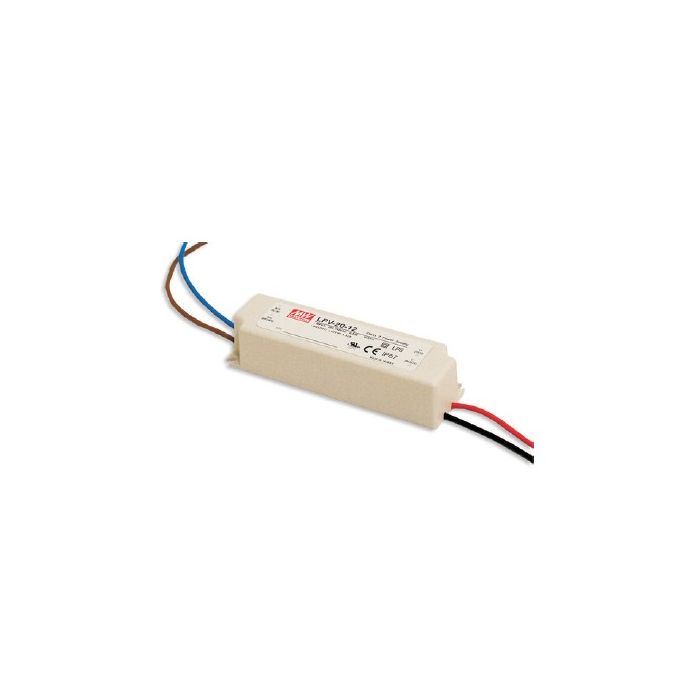

LED VOEDING 5V/3.00A 15,0W IP67 BEHUIZING
€ 16,50
€ 13,64
Artikelnummer
LPV2005
- ArtikelnummerLPV2005
- MerkMEANWELL
- Aantal 3+ € 15,67 € 12,95
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 70A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 220g
Dimensons 118x35x26mm (LxWXH)
Output Voltage: 5Vdc
Output Current Range: 0 - 3,00A
Output Power: 15W
Output Voltage Tolerance: 5%
Ripple & Noise: 80mVp-p
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IP67, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 70A
Over Load Protection: 110...150%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+70°C
Weight: 220g
Dimensons 118x35x26mm (LxWXH)
Output Voltage: 5Vdc
Output Current Range: 0 - 3,00A
Output Power: 15W
Output Voltage Tolerance: 5%
Ripple & Noise: 80mVp-p
