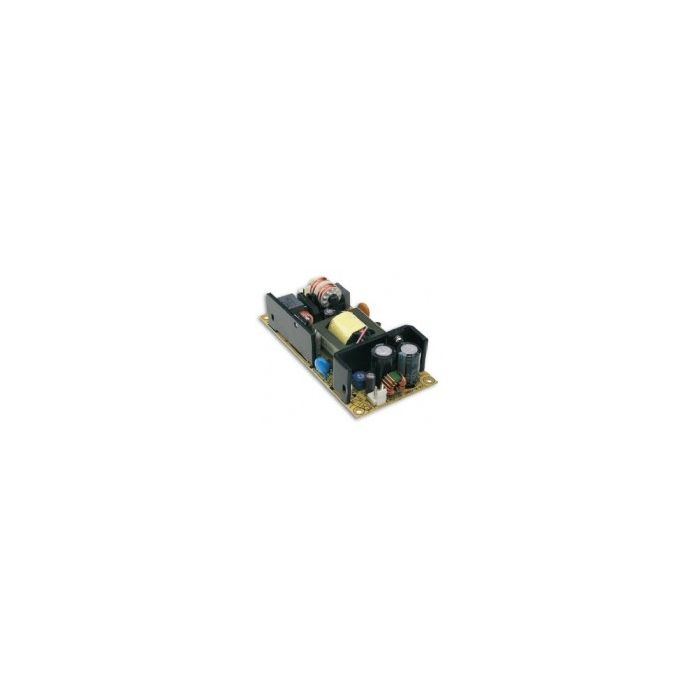

LED VOEDING 48V/0,63A 30,2W OPEN FRAME
€ 22,95
€ 18,97
Artikelnummer
PLP3048
- ArtikelnummerPLP3048
- MerkMEANWELL
- Aantal 3+ € 21,80 € 18,02
Features
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
Open-frame
Built-in active PFC function
Suitable for LED lighting and moving sign applications
Technical Specifications
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 40A
Over Load Protection: 100...110%
Withstand Voltage
(I/P-O/P): 3750V AC
(I/P-FG): 1880V AC
(O/P-FG): 500V AC
I/P = Input, O/P = Output, FG = Frame Ground
Operating Temperature: -30...+70°C
Weight: 110g
Dimensons 101,6x50,8x25mm (LxWXH)
Output Voltage: 48Vdc
Output Current Range: 0 - 0,63A
Current Adjustment: 0,475 - 0,63A
Output Power: 30,24W
Output Voltage Tolerance: 10%
Ripple & Noise: 4,8Vp-p
Typ. Efficiency: 86,5%
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
Open-frame
Built-in active PFC function
Suitable for LED lighting and moving sign applications
Technical Specifications
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 40A
Over Load Protection: 100...110%
Withstand Voltage
(I/P-O/P): 3750V AC
(I/P-FG): 1880V AC
(O/P-FG): 500V AC
I/P = Input, O/P = Output, FG = Frame Ground
Operating Temperature: -30...+70°C
Weight: 110g
Dimensons 101,6x50,8x25mm (LxWXH)
Output Voltage: 48Vdc
Output Current Range: 0 - 0,63A
Current Adjustment: 0,475 - 0,63A
Output Power: 30,24W
Output Voltage Tolerance: 10%
Ripple & Noise: 4,8Vp-p
Typ. Efficiency: 86,5%
