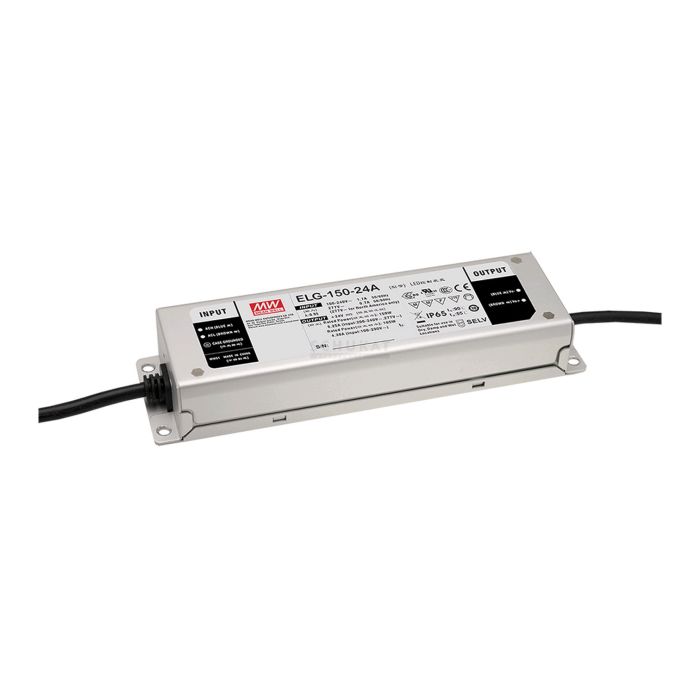

LED VOEDING 24V/6.25A 150W IP65 BEHUIZING

€ 62,50 € 51,65
Artikelnummer
ELG15024AB
  • ArtikelnummerELG15024AB
  • MerkMEANWELL
  • Aantal 3+   € 59,36 € 49,06
Print deze pagina Print deze pagina

• Constant voltage and constant current
• Independent power supply
• Metal housing
• Wide iput range
• Overload protection: constant current limiting, auto recovery
• Protections: short circuit, overcurrent, overvoltage, over temperature
• Built-in active PFC function
• Suitable for LED lighting applications
• SELV
• Safety standards: EN61347-1, EN61347-2-13 and more
• EMC standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and more
• Meets 6kV surge immunity level
• 5 years warranty
ELG-150_: IP67, voltage and current fixed
ELG-150_A: IP65, ouput voltage and current adjustable through built-in potentiometer on the bottom side of the housing
ELG-150_B: IP67, dimming via executed control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
ELG-150_AB: IP65, ouput voltage and current adjustable through built-in potentiometer on the bottom side of the housing, dimming via executed control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
ELG-150_DA: IP67, DALI interface
