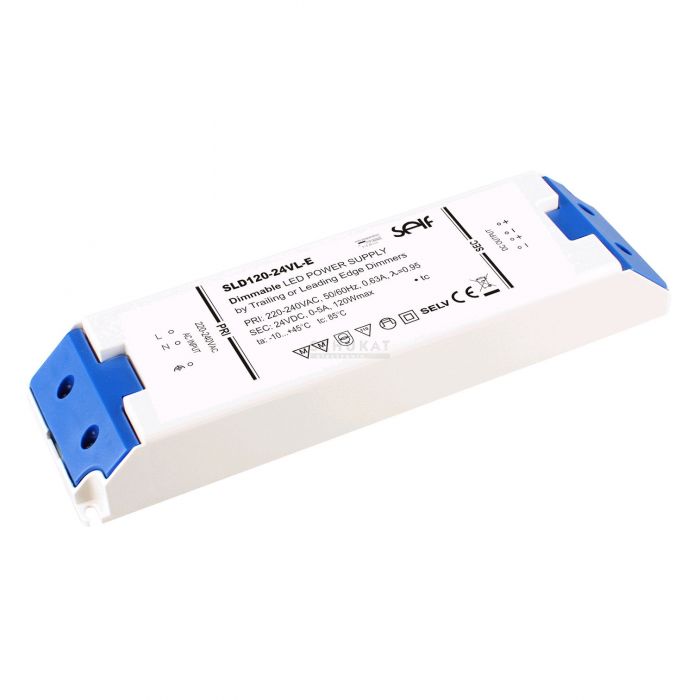

LED VOEDING 24V/5A 120W IP20 BEHUIZING DIMBAAR MET GEWONE DIMMER
€ 84,95
€ 70,21
Artikelnummer
SLD12024VL
- ArtikelnummerSLD12024VL
- MerkSELF
- Aantal 3+ € 76,45 € 63,18
Features
| • Independent power supply • Class II protection, SELV output • Flicker-free design • Triac dimmable • Constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 55A |
| Operating Temperature: | -10...+45°C |
| Nominal Life-Time (Tc=85°C): | 30.000h |
| Weight: | 665g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLD120-24VL-E | 24 | 0...5 | 120 | 500 | 90 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
