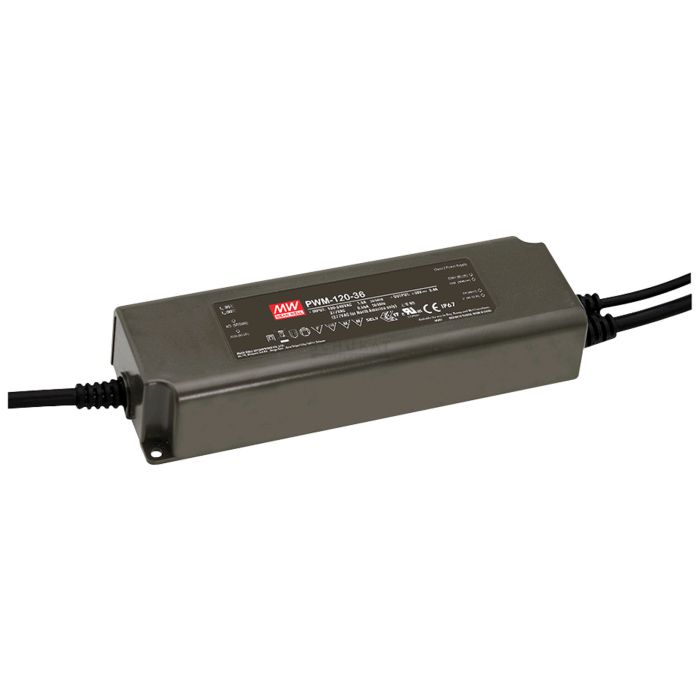

LED VOEDING 24V/5.00A 120W IP67 BEHUIZING PWM
€ 69,50
€ 57,44
Artikelnummer
PWM12024
- ArtikelnummerPWM12024
- MerkMEANWELL
- Aantal 3+ € 66,02 € 54,56
| Features |
| • Universal input • Plastic enclosure IP67 • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Suitable for LED lighting and moving sign applications • PWM output voltage • Dimming function (external voltage 1...10V DC, PWM) • EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...305V AC (47...63Hz) |
| 127...431V DC | |
| Input Inrush Current, Max.: | 60A |
| Over Load Protection: | 108...120% |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -40...+70°C |
| Weight: | 970g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA |
IA |
PA |
DUA |
h |
| [V] | [A] | [W] | [%] | [%] | |
| PWM-120-12 | 12 | 10 | 120 | 4 | 88 |
| PWM-120-24 | 24 | 5 | 120 | 4 | 90 |
| PWM-120-36 | 36 | 3,4 | 122,4 | 2 | 90 |
| PWM-120-48 | 48 | 2,5 | 120 | 1 | 90,5 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, DUA = Output Voltage Tolerance, h = Typ. Efficiency | |||||
|
|||||
| Note |
| Suitable for indoor use and outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes. These power supplies are considered as a component that has to be installed in a final equipment. |
