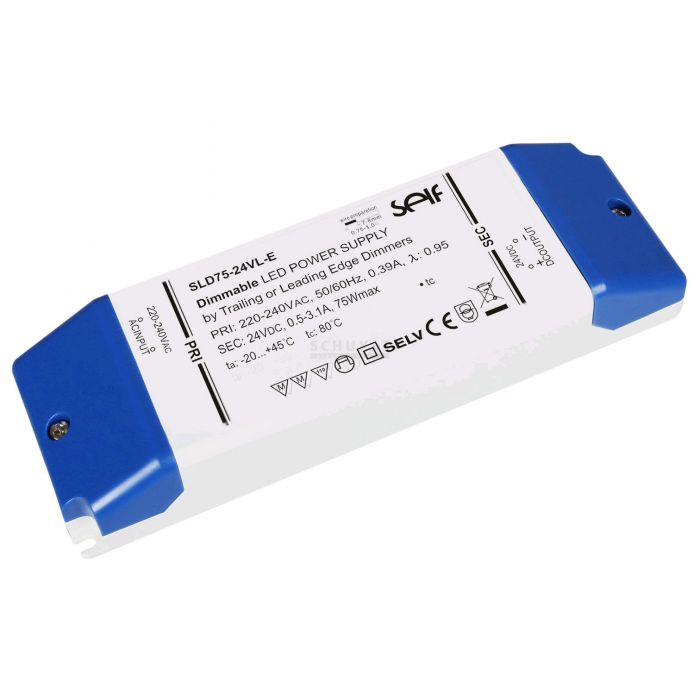

LED VOEDING 24V/3.10A 75W IP20 BEHUIZING DIMBAAR MET GEWONEDIMMER
€ 69,95
€ 57,81
Artikelnummer
SLD7524VLE
- ArtikelnummerSLD7524VLE
- MerkSELF
- Aantal 3+ € 62,94 € 52,02
Features
| • Independent power supply • Class II protection, SELV output • Constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 30A |
| Operating Temperature: | -10...+45°C |
| Nominal Life-Time (Tc=45°C): | 30.000h |
| Weight: | 430g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLD75-12VL-E | 12 | 1...6,25 | 75 | 300 | 85 |
| SLD75-24VL-E | 24 | 0,5...3,1 | 75 | 300 | 86,5 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
|
|||||
