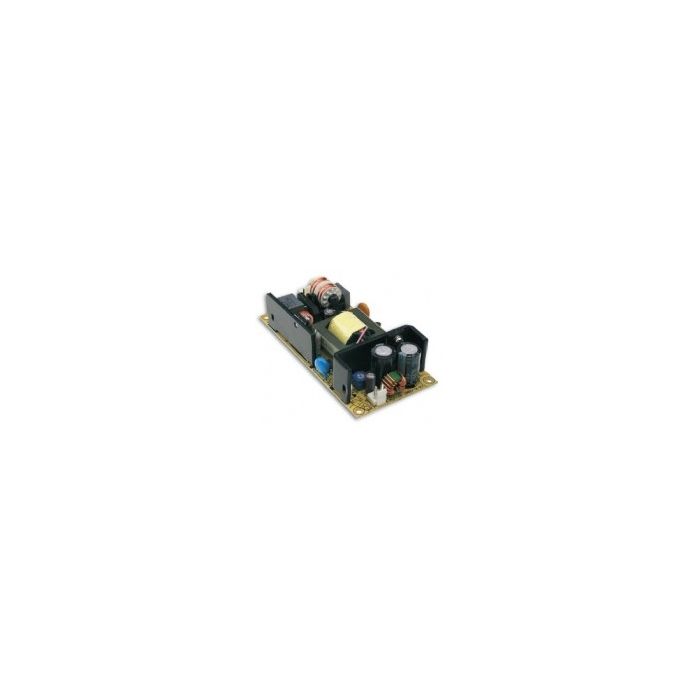

LED VOEDING 24V/1,3A 31,2W OPEN FRAME

Features
• Universal input
• Overload protection, current limiting, auto recovery
• Protections: short circuit/over load/over voltage
• Open-frame
• Built-in active PFC function
• Suitable for LED lighting and moving sign applications
Technical Specifications

Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 40A
Over Load Protection: 100...110%
Withstand Voltage
(I/P-O/P): 3750V AC
(I/P-FG): 1880V AC
(O/P-FG): 500V AC
I/P = Input, O/P = Output, FG = Frame Ground
Operating Temperature: -30...+70°C
Weight: 110g
Dimensons 101,6x50,8x25mm (LxWXH)

Output Voltage: 24Vdc
Output Current Range: 0 - 1,3A
Current Adjustment: 0,975 - 1,3A
Output Power: 31,2W
Output Voltage Tolerance: 10%
Ripple & Noise: 2,4Vp-p
Typ. Efficiency: 85,5%
