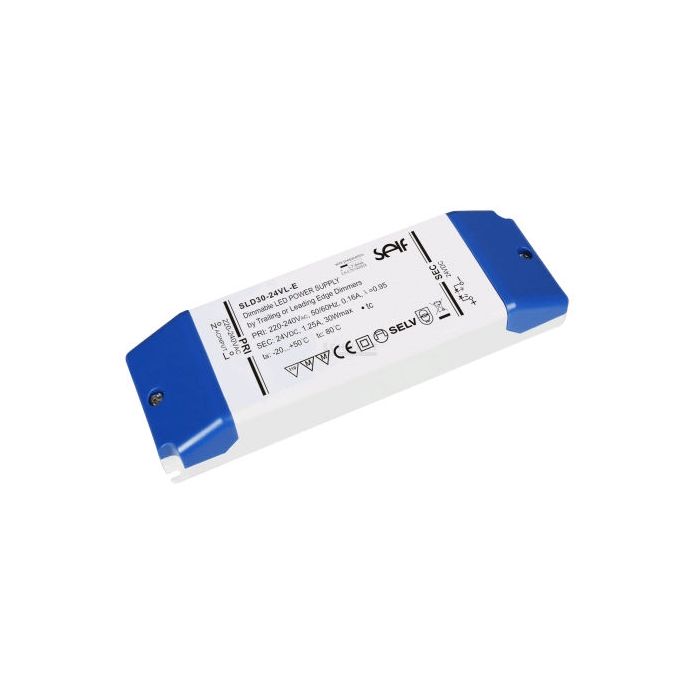

LED VOEDING 24V/1.25A 30W IP20 BEHUIZING DIMBAAR MET GEWONEDIMMER
€ 38,95
€ 32,19
Artikelnummer
SLD3024VLE
- ArtikelnummerSLD3024VLE
- MerkSELF
- Aantal 3+ € 35,05 € 28,97
Features
| • Independent power supply • Class II protection, SELV output • Flicker-free design • Triac dimmable • Constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 20A |
| Operating Temperature: | -20...+50°C |
| Nominal Life-Time (Tc=50°C): | 30.000h |
| Weight: | 230g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLD30-12VL-E | 12 | 0...2,5 | 30 | 300 | 81 |
| SLD30-24VL-E | 24 | 0...1,25 | 30 | 300 | 83 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
