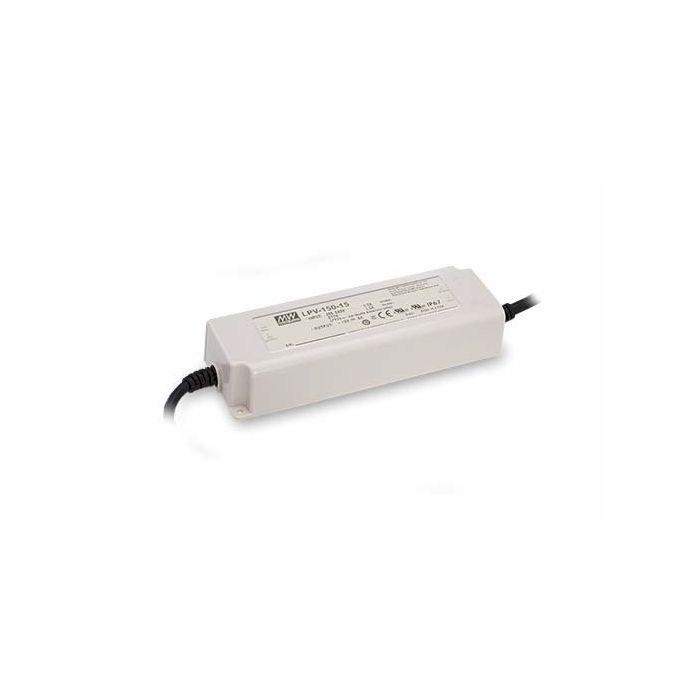

LED VOEDING 15V/8A 120W IP67 BEHUIZING
€ 49,95
€ 41,28
Artikelnummer
LPV15015
- ArtikelnummerLPV15015
- MerkMEANWELL
- Aantal 3+ € 47,44 € 39,21
Features
| • Plastic enclosure IP67 • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Fixed output voltage |
 |
| Technical Specifications |
|
|
| Input Voltage: | 180...305V AC (47...63Hz) |
| 254...431V DC | |
| Input Inrush Current, Max.: | 60A |
| Over Load Protection: | 110...150% |
| Withstand Voltage (I/P-O/P): | 3000V AC |
| Operating Temperature: | -25...+65°C |
| Weight: | 740g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| LPV15012 | 12 | 0...10 | 120 | 5 | 200 | 87 |
| LPV15015 | 15 | 0...8 | 120 | 5 | 200 | 88 |
| LPV15024 | 24 | 0...6,3 | 151,2 | 5 | 200 | 89 |
| LPV15036 | 36 | 0...4,2 | 151,2 | 5 | 200 | 89 |
| LPV15048 | 48 | 0...3,2 | 153,6 | 5 | 200 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Typ. Efficiency | ||||||
|
||||||
| Note |
Devices only for use in equipment with another primary purpose such as photocopiers, overhead projectors and slide projectors or for scale illumination or indication purposes.
Suitable for indoor use and outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minutes
