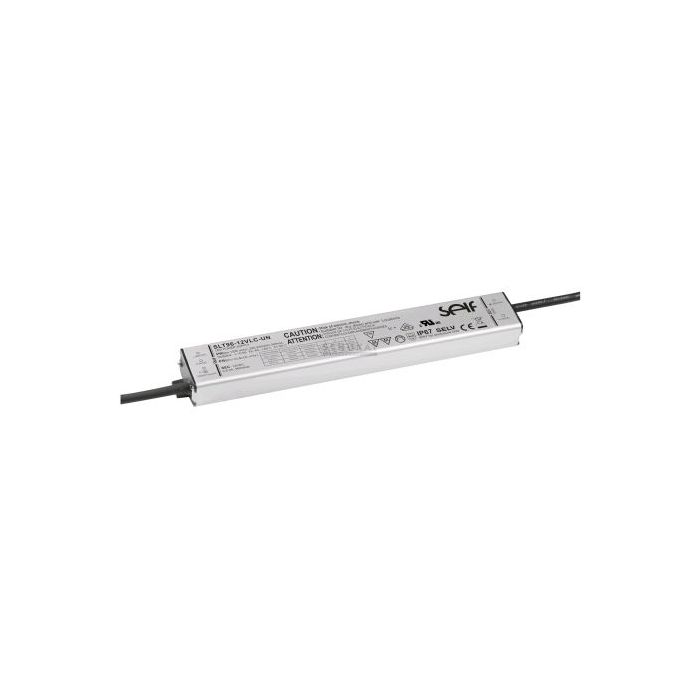

LED VOEDING 12V/8.00A 96W IP67 BEHUIZING
€ 72,50
€ 59,92
Artikelnummer
SLT9612VLC
- ArtikelnummerSLT9612VLC
- MerkSELF
- Aantal 3+ € 68,87 € 56,92
Features
| • Independent power supply • Class I protection, SELV output • Constant voltage • IP67 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 100...277V AC |
| Input Inrush Current: | 75A |
| Operating Temperature: | -40...+60°C |
| Nominal Life-Time (Tc=75°C): | 100.000h |
| Weight: | 500g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLT96-12VLC-UN | 12 | 0...8 | 96 | 500 | 92 |
| SLT96-24VLC-UN | 24 | 0...4 | 96 | 500 | 92,5 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
