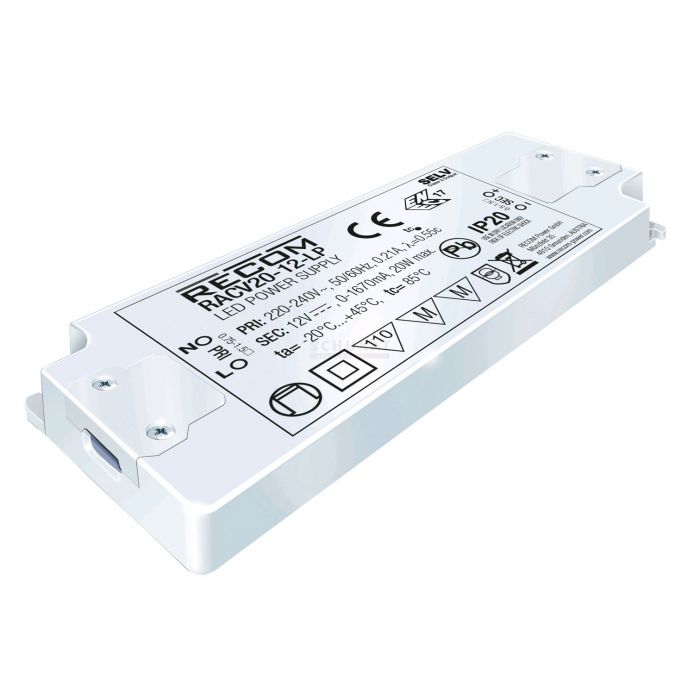

LED VOEDING 12V/1.67A 20W IP20 BEHUIZING
€ 24,95
€ 20,62
Artikelnummer
RACV20-12L
- ArtikelnummerRACV20-12L
- MerkRECOM
- Aantal 3+ € 22,45 € 18,55
Features
| • Universal input • Constant voltage • Not dimmable • Plastic housing IP20 • Low profile (13mm high) • Overload protection by shutdown, auto recovery • Protected against short circuit, overload • For LED and lighting applications • Safety standards: IEC 61347-1; IEC 61347-2-13; EN 61347-1; EN 61347-2-13 • EMC standards: EN 55015 • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 198...264V AC (47...63Hz) |
| Input Inrush Current, Max.: | 8A |
| No-load power, less than: | 0,5W |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -20...+45°C |
| Dimensions(LxWxH): | 128x50x13mm |
| Weight: | 75g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [mA] | [W] | [mVp-p] | [%] | |
| RACV20-12-LP | 12 | 0...1670 | 20 | 0,7 | 82 |
| RACV20-24-LP | 24 | 0...830 | 20 | 0,5 | 84 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Typ. Efficiency | |||||
