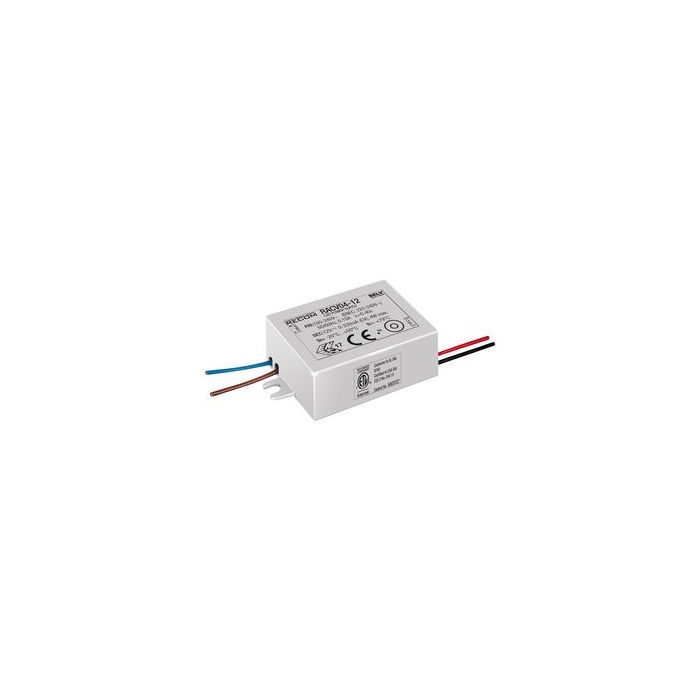

LED VOEDING 12V/0.33A 4W IP65 BEHUIZING
€ 11,50
€ 9,50
Artikelnummer
RACV04-12
- ArtikelnummerRACV04-12
- MerkRECOM
- Aantal 3+ € 10,35 € 8,55
Features |
• Universal input • Plastic enclosure IP65 • Overload protection, shutdown, auto recovery • Protections: short circuit/over load • Suitable for LED lighting and moving sign applications • Constant voltage • EN61347, UL 8750 |
Technical Specifications |
Input Voltage: | 90...264V AC (47...63Hz) |
Input Inrush Current, Max.: | 11A |
Withstand Voltage (I/P-O/P): | 3750V AC |
Operating Temperature: | -20...+50°C |
Weight: | 40g |
I/P = Input, O/P = Output |
|
Part Nr. | UA |
IA |
PA |
URN |
h |
[V] | [mA] | [W] | [mVp-p] | [%] | |
RACV04-12 | 12 | 0...350 | 4 | 0,12 | 75 |
RACV04-24 | 24 | 0...700 | 4 | 0,24 | 75 |
UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Typ. Efficiency |
