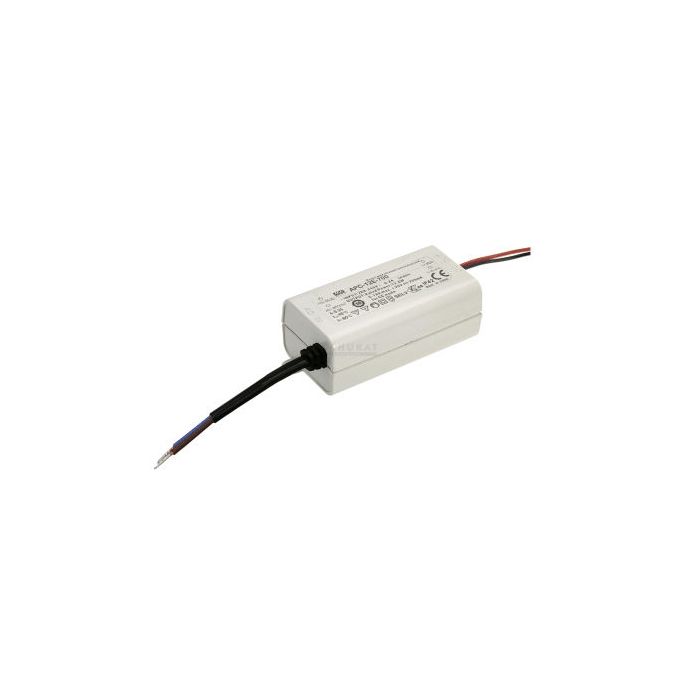

LED DRIVER 350MA 9-36V 12W IP42
€ 8,95
€ 7,40
Artikelnummer
APC12E350
- ArtikelnummerAPC12E350
- MerkMEANWELL
- Aantal 5+ € 8,06 € 6,66
Features
| • Universal input • Plastic enclosure IP42 • Protections: short circuit, over voltage • Suitable for LED lighting and moving sign applications • Constant current |
 |
| Technical Specifications |
|
|
| Input Voltage: | 180...264V AC (47...63Hz) |
| 254...370V DC | |
| Input Inrush Current, Max.: | 70A |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 80g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [mA] | [W] | [%] | [mVp-p] | [%] | |
| APC12E350 | 9...36 | 350 | 12,6 | 5 | 300 | 81 |
| APC12E700 | 9...18 | 700 | 12,6 | 5 | 250 | 79 |
| UA = Output Voltage Range, IA = Output Current, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Typ. Efficiency | ||||||
|
||||||
| Note |
Devices only for use in equipment with another primary purpose such as photocopiers, overhead projectors and slide projectors or for scale illumination or indication purposes.
Suitable for indoor use.
