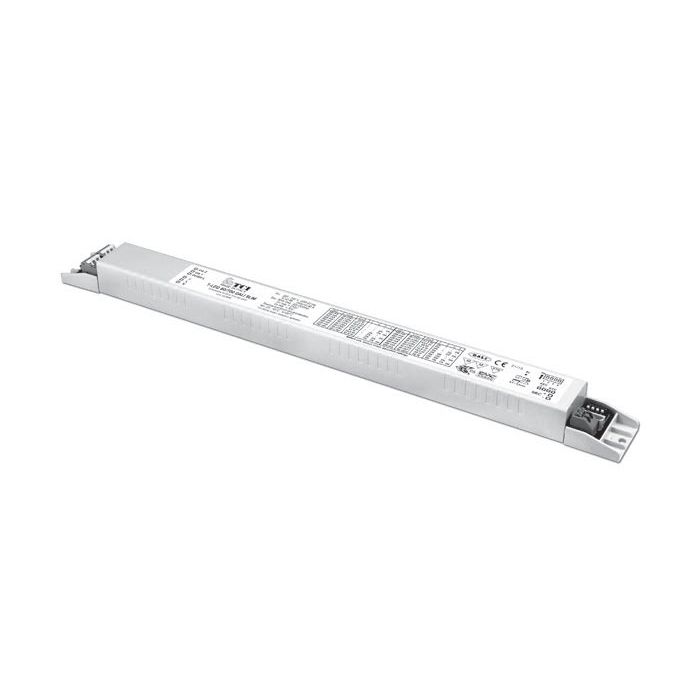

LED DRIVER 30-170VDC 220MA-500MA 80W 360X30X21MMDALI - PUSH ON MAIN

Multipower driver supplied with dip-switch for the selection

of the output current.

• Driver for built-in use.

• It can be used for lighting equipment in protection class I.

• Active Power Factor Corrector.

• Analogic input for thermal sensor connection.

• Current regulation ±5 % including temperature variations.

• Output is not isolated from the input.

• Stand-by power less than 0,5 W.

• Input and output terminal blocks on the opposite sides

(wire cross-section up to 1,5 mm2 / AWG15).

• Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

• Thermal protection = C.5.e.
