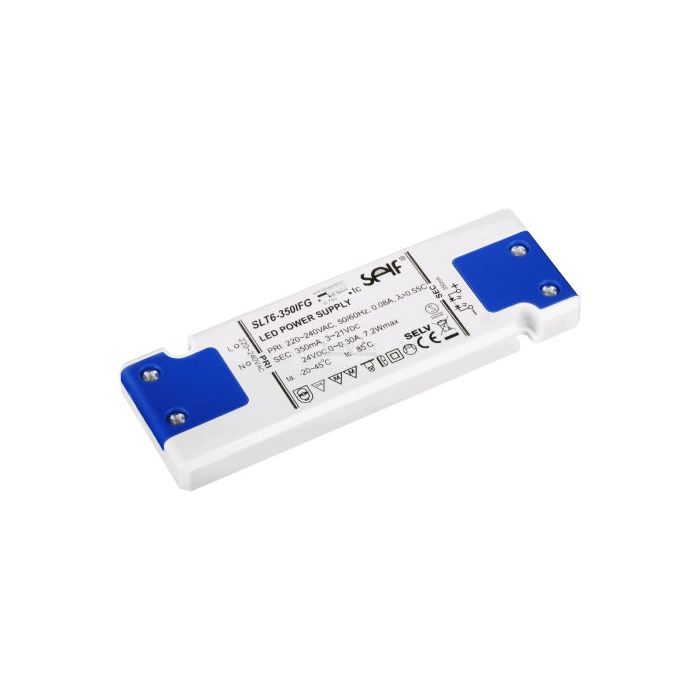

LED DRIVER 3-21VDC 350MA 7,4W
€ 12,63
€ 10,44
Artikelnummer
SLT6350IFG
- ArtikelnummerSLT6350IFG
- MerkSELF
- Aantal 5+ € 11,36 € 9,39
Features
| • Independent power supply • Class II protection, SELV output • Constant current and constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 3 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current | |
| SLT6-350IFG: | 18,5A |
| SLT3-700IFG: | 19A |
| Operating Temperature: | -20...+45°C |
| Nominal Life-Time (Tc=85°C): | 35.000h |
| Weight: | 45g |
|
|
| Part Nr. | UA | IA | PA | IRN | h |
| [V] | [mA] | [W] | [mAp-p] | [%] | |
| SLT6-350IFG | 3...21 | 350 | 7,4 | 30 | 73,8 |
| SLT6-700IFG | 3...8,5 | 700 | 7,4 | 70 | 67 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, IRN = Ripple & Noise, h = Efficiency | |||||
