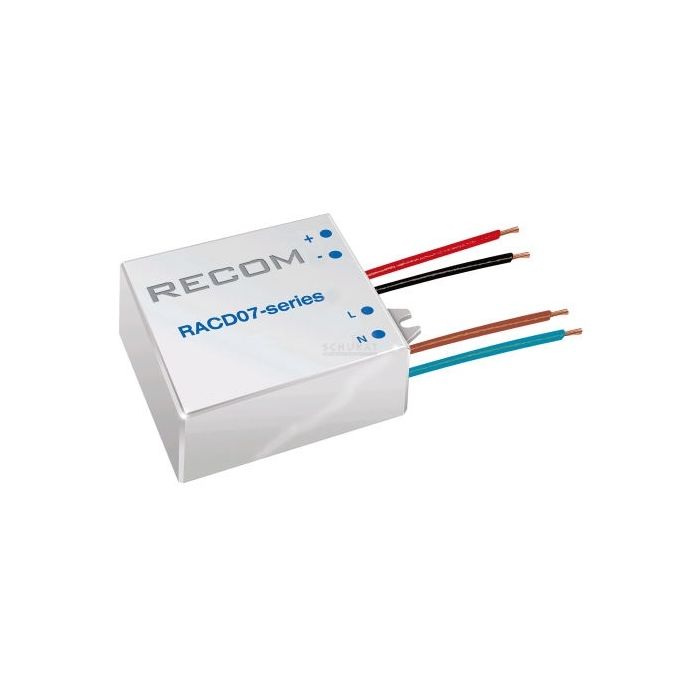

LED DRIVER 3-11VDC 350MA 7W
€ 24,95
€ 20,62
Artikelnummer
RACD07-350
- ArtikelnummerRACD07-350
- MerkRECOM
- Aantal 5+ € 22,45 € 18,55
Features
| • Universal input • Constant current • Not dimmable • Plastic housing IP67 • Overload protection by current limiting • Protected against short circuit, overload, overvoltage • For LED and lighting applications • Protection class II • Safety standards: UL 8750; UL 1310; IEC 61347-2-13; IEC 61347-1; EN 61347-2-13; EN 61347-1 • EMC standards: EN 55015 • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...295V AC (47...63Hz) |
| Overload Protection: | 105...120% |
| No-load power, less than: | 0,5W |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -20...+40°C |
| Dimensions(LxWxH): | 57x40.8x24mm |
| Weight: | 74g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | DIA | IRN | h |
| [V] | [mA] | [W] | [%] | [mA] | [%] | |
| RACD07-350 | 21...10 | 350 | 7 | 3 | 30 | 70 |
| RACD07-700 | 11...3 | 700 | 7 | 3 | 30 | 70 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, DIA = Output Current Tolerance, IRN = Ripple & Noise, h = Typ. Efficiency | ||||||
