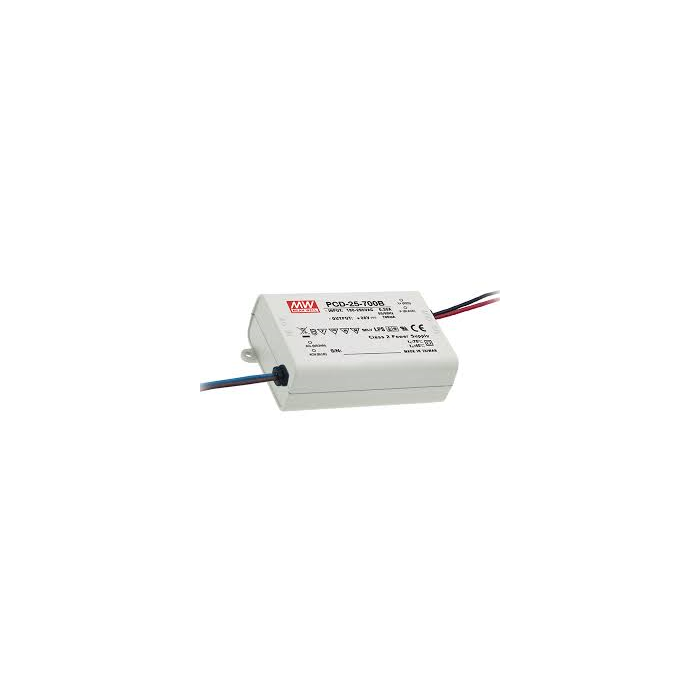

LED DRIVER 25W 24-36V/700MA CC DIMBAAR
€ 24,95
€ 20,62
Artikelnummer
PCD25700B
- ArtikelnummerPCD25700B
- MerkMEANWELL
- Aantal 5+ € 22,45 € 18,55
| Features |
| • PCD-25: AC dimmable, for leading edge and trailing edge dimmers, flexible wire terminals • PLD-25: not AC dimmable, flexible wire terminals • Plastic enclosure IP30 • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Suitable for LED lighting and moving sign applications • Constant current • EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 |
 |
| Technical Specifications |
|
|
| Input Voltage | |
| PCD-25: | 180...295V AC (47...63Hz) |
| PLD-25: | 90...295V AC (47...63Hz) |
| Input Inrush Current, Max. | |
| PCD-25: | 10A |
| PLD-25: | 25A |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -30...+60°C |
| Weight: | 190g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA |
IA |
PA |
URN |
h |
| [V] | [mA] | [W] | [Vp-p] | [%] | |
| PCD-25-350B | 40...58 | 0...350 | 20,3 | 4,6 | 82 |
| PCD-25-700B | 24...36 | 0...700 | 25,2 | 2,7 | 81 |
| PCD-25-1050B | 16...24 | 0...1050 | 25,2 | 2,2 | 80,5 |
| PCD-25-1400B | 12...18 | 0...1400 | 25,2 | 2 | 80 |
| PLD-25-350 | 40...58 | 0...350 | 20,3 | 4,6 | 85 |
| PLD-25-700 | 24...36 | 0...700 | 25,2 | 2,7 | 86 |
| PLD-25-1050 | 16...24 | 0...1050 | 25,2 | 2,2 | 85 |
| PLD-25-1400 | 12...18 | 0...1400 | 25,2 | 2 | 84 |
| UA = Output Voltage Range, IA = Output Current Range, PA = Output Power, URN = Ripple & Noise, h = Typ. Efficiency | |||||
|
|||||
