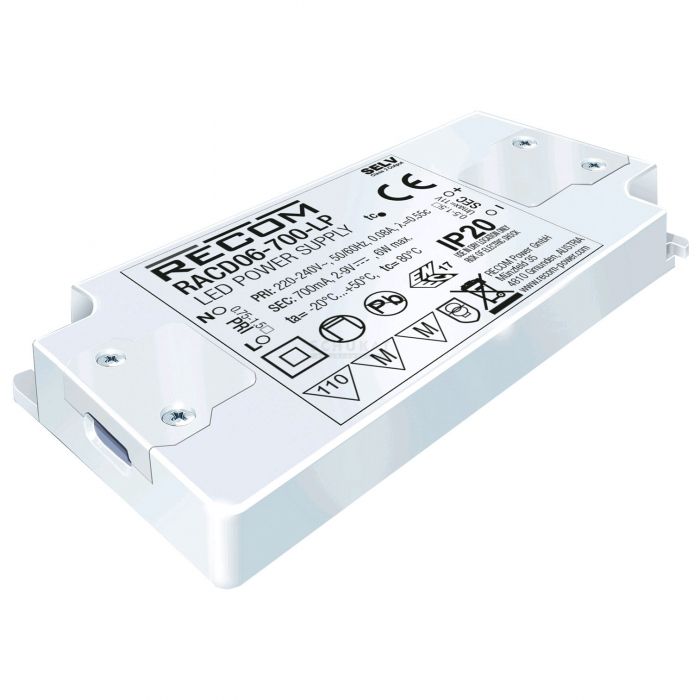

LED DRIVER 2-9VDC 700MA 6W
€ 17,94
€ 14,83
Artikelnummer
RACD06-70L
- ArtikelnummerRACD06-70L
- MerkRECOM
- Aantal 5+ € 16,14 € 13,34
Features
| • Universal input • Constant current • Not dimmable • Plastic housing IP20 • Low profile (11mm high) • Overload protection by shutdown, auto recovery • Protected against short circuit, overload • For LED and lighting applications • Safety standards: IEC 61347-1; IEC 61347-2-13; EN 61347-1; EN 61347-2-13 • EMC standards: EN 55015 • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 198...264V AC (47...63Hz) |
| Input Inrush Current, Max.: | 11A |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -20...+50°C |
| Dimensions(LxWxH): | 98x46x11mm |
| Weight: | 45g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | IRN | h |
| [V] | [mA] | [W] | [Ap-p] | [%] | |
| RACD06-350-LP | 2...18 | 350 | 6 | 0,05 | 77 |
| RACD06-500-LP | 2...12 | 500 | 6 | 0,05 | 75 |
| RACD06-700-LP | 2...9 | 700 | 6 | 0,05 | 74 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, IRN = Ripple & Noise, h = Typ. Efficiency | |||||
